简介：

构建高性能的云原生数据、机器学习，大数据分析，海量存储的基础架构、MinIO支持各种应用程序数据工作负载。

特点：

高性能
可扩展性
云的原生支持
简单
开放全部源代码 + 企业级支持
与Amazon S3 兼容

一、搭建

支持Docker镜像部署

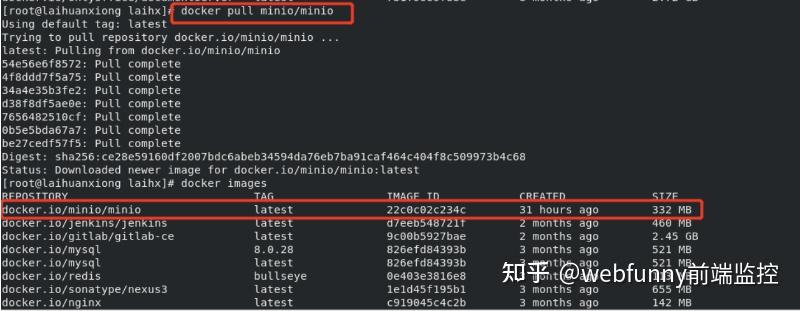

1、从 http:// hub.docker.com 拉取最新镜像

命令：docker pull minio/minio （此命令就等同于 : docker pull minio/minio:latest）

2、创建目录

一个用来存放配置，一个用来存储上传文件的目录

启动前需要先创建Minio外部挂载的配置文件（ /home/minio/config）,和存储上传文件的目录（ /home/minio/data）

mkdir -p /home/minio/config
mkdir -p /home/minio/data

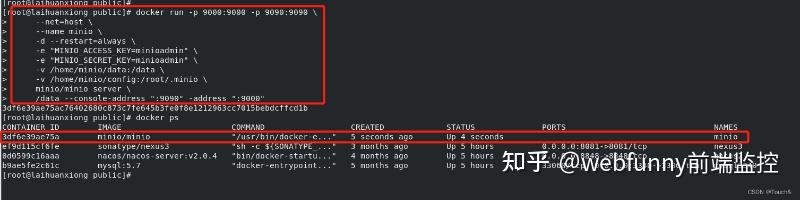

3、创建Minio容器并运行

多行命令

docker run -p 9000:9000 -p 9090:9090 \
     --net=host \
     --name minio \
     -d --restart=always \
     -e "MINIO_ACCESS_KEY=minioadmin" \
     -e "MINIO_SECRET_KEY=minioadmin" \
     -v /home/minio/data:/data \
     -v /home/minio/config:/root/.minio \
     minio/minio server \
     /data --console-address ":9090" -address ":9000"

单行命令

docker run -p 9000:9000 -p 9090:9090      --net=host      --name minio      -d --restart=always      -e "MINIO_ACCESS_KEY=minioadmin"      -e "MINIO_SECRET_KEY=minioadmin"      -v /home/minio/data:/data      -v /home/minio/config:/root/.minio      minio/minio server      /data --console-address ":9090" -address ":9000"

9090：客户端端口

9000：api端口（项目中所用）

MINIO_ACCESS_KEY ：账号

MINIO_SECRET_KEY ：密码（账号长度必须大于等于5，密码长度必须大于等于8位）

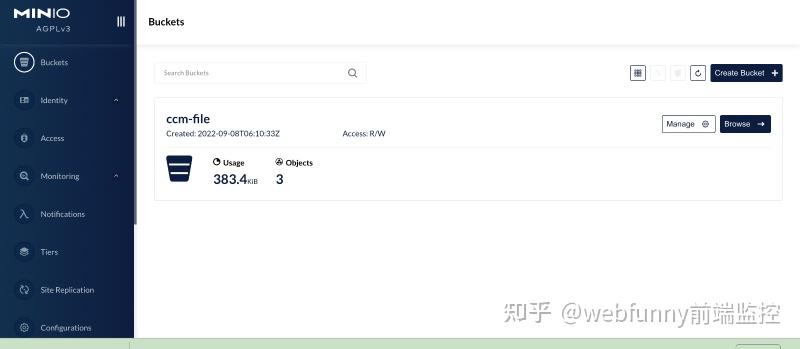

4、客户端访问

地址： http:// ip:9090

二、整合项目（SpringBoot项目）

1、application.yml

2、minio文件上传工具类

public class MinioUtil {
    private static String minioUrl;
    private static String minioName;
    private static String minioPass;
    private static String bucketName;
    public static void setMinioUrl(String minioUrl) {
        MinioUtil.minioUrl = minioUrl;
    public static void setMinioName(String minioName) {
        MinioUtil.minioName = minioName;
    public static void setMinioPass(String minioPass) {
        MinioUtil.minioPass = minioPass;
    public static void setBucketName(String bucketName) {
        MinioUtil.bucketName = bucketName;
    public static String getMinioUrl() {
        return minioUrl;
    public static String getBucketName() {
        return bucketName;
    private static MinioClient minioClient = null;
     * 上传文件
     * @param file
     * @return
    public static String upload(MultipartFile file, String bizPath, String customBucket) {
        String file_url = "";
        //update-begin-author:wangshuai date:20201012 for: 过滤上传文件夹名特殊字符，防止攻击
        bizPath=StrAttackFilter.filter(bizPath);
        //update-end-author:wangshuai date:20201012 for: 过滤上传文件夹名特殊字符，防止攻击
        String newBucket = bucketName;
        if(oConvertUtils.isNotEmpty(customBucket)){
            newBucket = customBucket;
        try {
            initMinio(minioUrl, minioName,minioPass);
            // 检查存储桶是否已经存在
            if(minioClient.bucketExists(BucketExistsArgs.builder().bucket(newBucket).build())) {
                log.info("Bucket already exists.");
            } else {
                // 创建一个名为ota的存储桶
                minioClient.makeBucket(MakeBucketArgs.builder().bucket(newBucket).build());
                log.info("create a new bucket.");
            InputStream stream = file.getInputStream();
            // 获取文件名
            String orgName = file.getOriginalFilename();
            if("".equals(orgName)){
                orgName=file.getName();
            orgName = CommonUtils.getFileName(orgName);
            String objectName = bizPath+"/"+orgName.substring(0, orgName.lastIndexOf(".")) + "_" + System.currentTimeMillis() + orgName.substring(orgName.lastIndexOf("."));
            // 使用putObject上传一个本地文件到存储桶中。
            if(objectName.startsWith("/")){
                objectName = objectName.substring(1);
            PutObjectArgs objectArgs = PutObjectArgs.builder().object(objectName)
                    .bucket(newBucket)
                    .contentType("application/octet-stream")
                    .stream(stream,stream.available(),-1).build();
            minioClient.putObject(objectArgs);
            stream.close();
            file_url = minioUrl+newBucket+"/"+objectName;
        }catch (Exception e){
            log.error(e.getMessage(), e);
        return file_url;
     * 文件上传
     * @param file
     * @param bizPath
     * @return
    public static String upload(MultipartFile file, String bizPath) {
        return  upload(file,bizPath,null);
     * 获取文件流
     * @param bucketName
     * @param objectName
     * @return
    public static InputStream getMinioFile(String bucketName,String objectName){
        InputStream inputStream = null;
        try {
            initMinio(minioUrl, minioName, minioPass);
            GetObjectArgs objectArgs = GetObjectArgs.builder().object(objectName)
                    .bucket(bucketName).build();
            inputStream = minioClient.getObject(objectArgs);
        } catch (Exception e) {
            log.info("文件获取失败" + e.getMessage());
        return inputStream;
     * 删除文件
     * @param bucketName
     * @param objectName
     * @throws Exception
    public static void removeObject(String bucketName, String objectName) {
        try {
            initMinio(minioUrl, minioName,minioPass);
            RemoveObjectArgs objectArgs = RemoveObjectArgs.builder().object(objectName)
                    .bucket(bucketName).build();
            minioClient.removeObject(objectArgs);
        }catch (Exception e){
            log.info("文件删除失败" + e.getMessage());
     * 获取文件外链
     * @param bucketName
     * @param objectName
     * @param expires
     * @return
    public static String getObjectURL(String bucketName, String objectName, Integer expires) {
        initMinio(minioUrl, minioName,minioPass);
            GetPresignedObjectUrlArgs objectArgs = GetPresignedObjectUrlArgs.builder().object(objectName)
                    .bucket(bucketName)
                    .expiry(expires).build();
            String url = minioClient.getPresignedObjectUrl(objectArgs);
            return URLDecoder.decode(url,"UTF-8");
        }catch (Exception e){
            log.info("文件路径获取失败" + e.getMessage());
        return null;
     * 初始化客户端
     * @param minioUrl
     * @param minioName
     * @param minioPass
     * @return
    private static MinioClient initMinio(String minioUrl, String minioName,String minioPass) {
        if (minioClient == null) {
            try {
                minioClient = MinioClient.builder()
                        .endpoint(minioUrl)
                        .credentials(minioName, minioPass)
                        .build();
            } catch (Exception e) {
                e.printStackTrace();
        return minioClient;
     * 上传文件到minio
     * @param stream
     * @param relativePath
     * @return
    public static String upload(InputStream stream,String relativePath) throws Exception {
        initMinio(minioUrl, minioName,minioPass);
        if(minioClient.bucketExists(BucketExistsArgs.builder().bucket(bucketName).build())) {
            log.info("Bucket already exists.");
        } else {
            // 创建一个名为ota的存储桶
            minioClient.makeBucket(MakeBucketArgs.builder().bucket(bucketName).build());
            log.info("create a new bucket.");
        PutObjectArgs objectArgs = PutObjectArgs.builder().object(relativePath)
                .bucket(bucketName)
                .contentType("application/octet-stream")
                .stream(stream,stream.available(),-1).build();
        minioClient.putObject(objectArgs);
        stream.close();
        return minioUrl+bucketName+"/"+relativePath;
}

3、controller

@PostMapping(value = "/uploadMinio")
    public Result<?> uploadMinio(HttpServletRequest request) {
        Result<?> result = new Result<>();
        String bizPath = request.getParameter("biz");
        if(oConvertUtils.isEmpty(bizPath)){
            bizPath = "";
        MultipartHttpServletRequest multipartRequest = (MultipartHttpServletRequest) request;
        MultipartFile file = multipartRequest.getFile("file");// 获取上传文件对象
        String orgName = file.getOriginalFilename();// 获取文件名
        orgName = CommonUtils.getFileName(orgName);
        String file_url =  MinioUtil.upload(file,bizPath);
        if(oConvertUtils.isEmpty(file_url)){
            return Result.error("上传失败,请检查配置信息是否正确!");
        //保存文件信息
        OSSFile minioFile = new OSSFile();
        minioFile.setFileName(orgName);
        minioFile.setUrl(file_url);
        ossFileService.save(minioFile);
        result.setMessage(file_url);
        result.setSuccess(true);
        return result;
    }

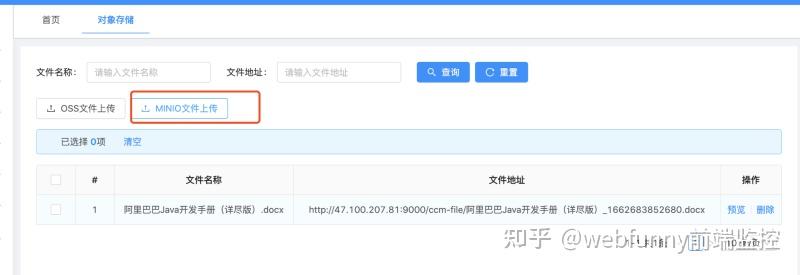

4、前端组件

<a-upload
        name="file"
        :multiple="false"
        :action="minioUploadAction"
        :headers="tokenHeader"
        :showUploadList="false"
        :beforeUpload="beforeUpload"
