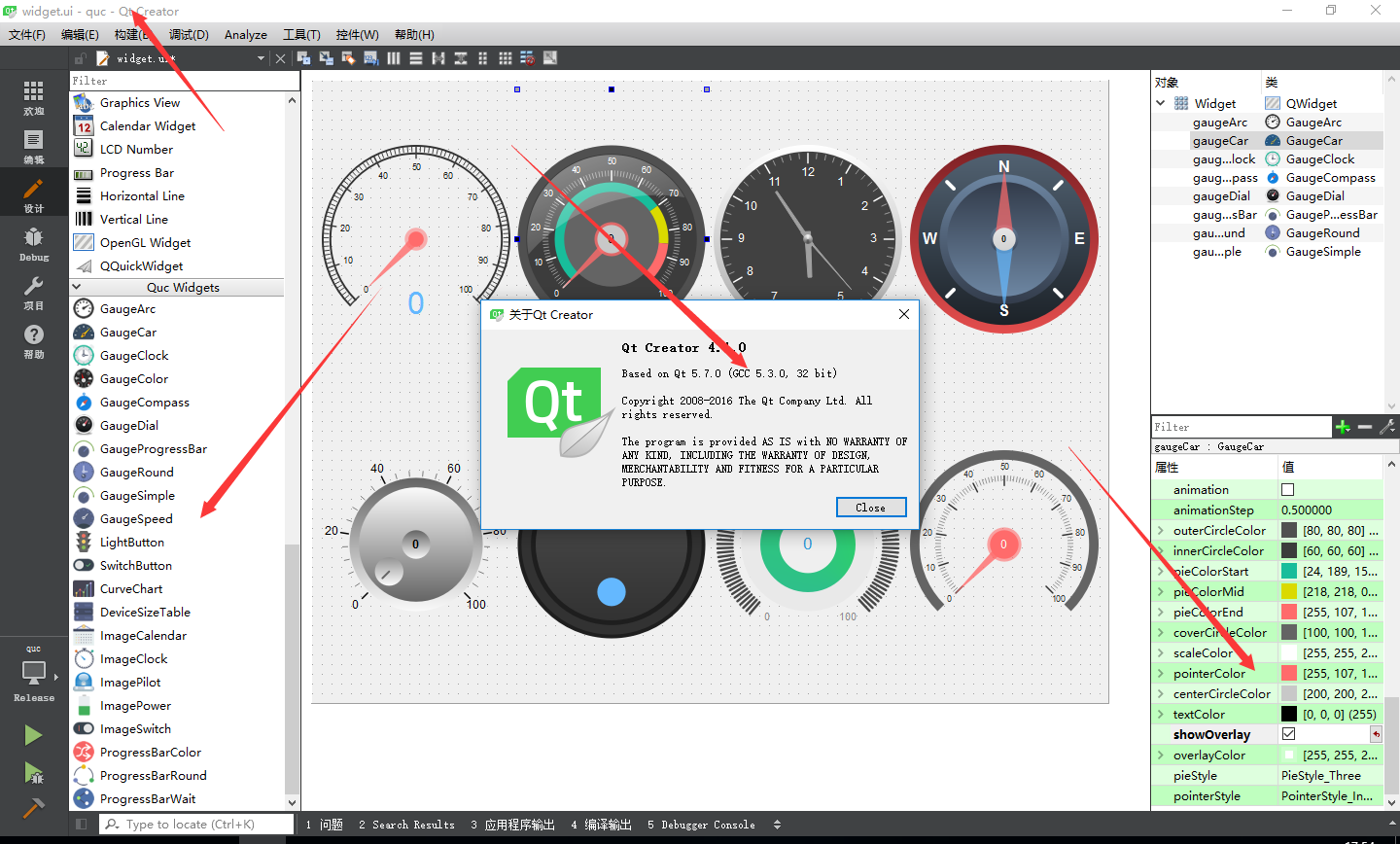

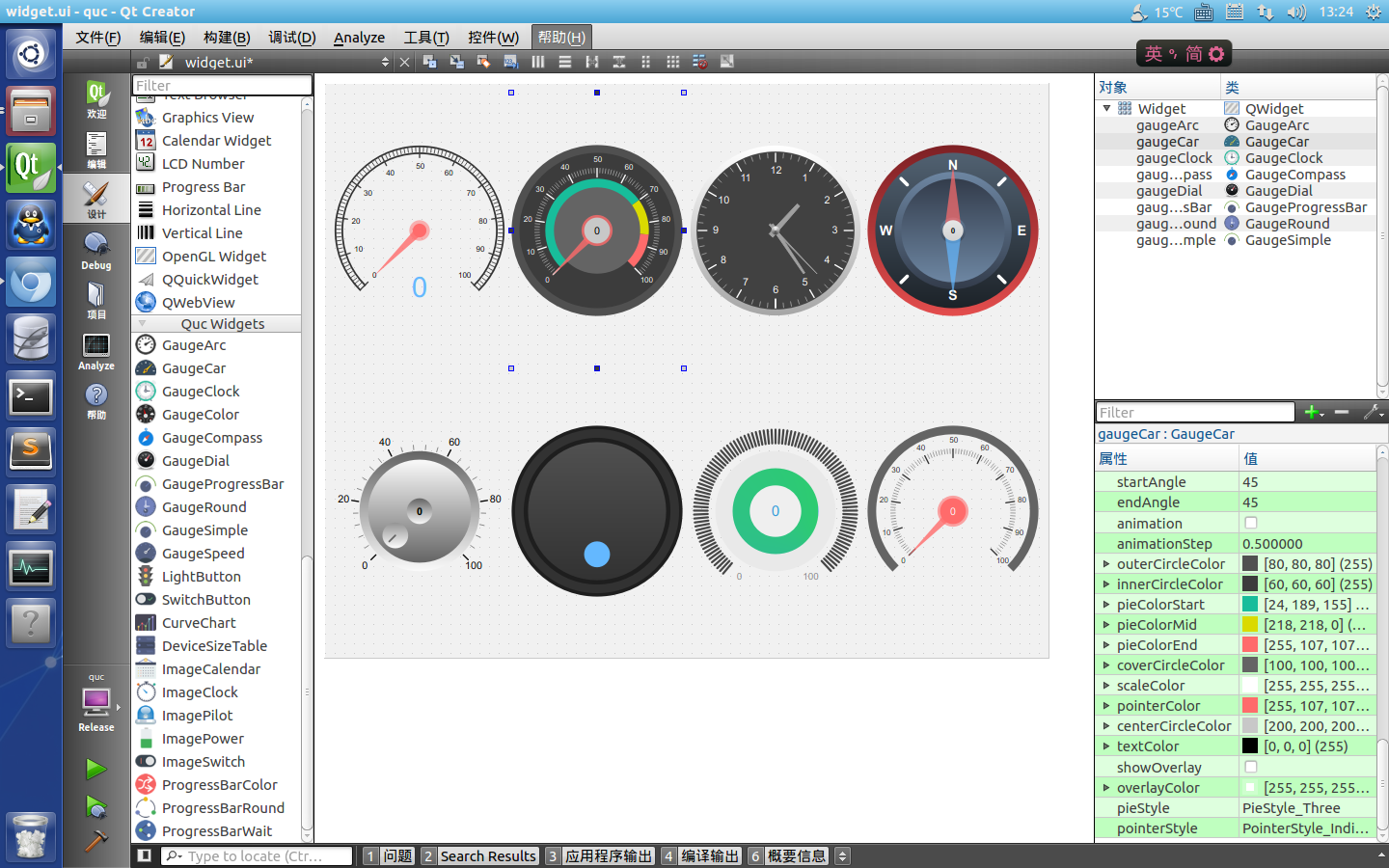

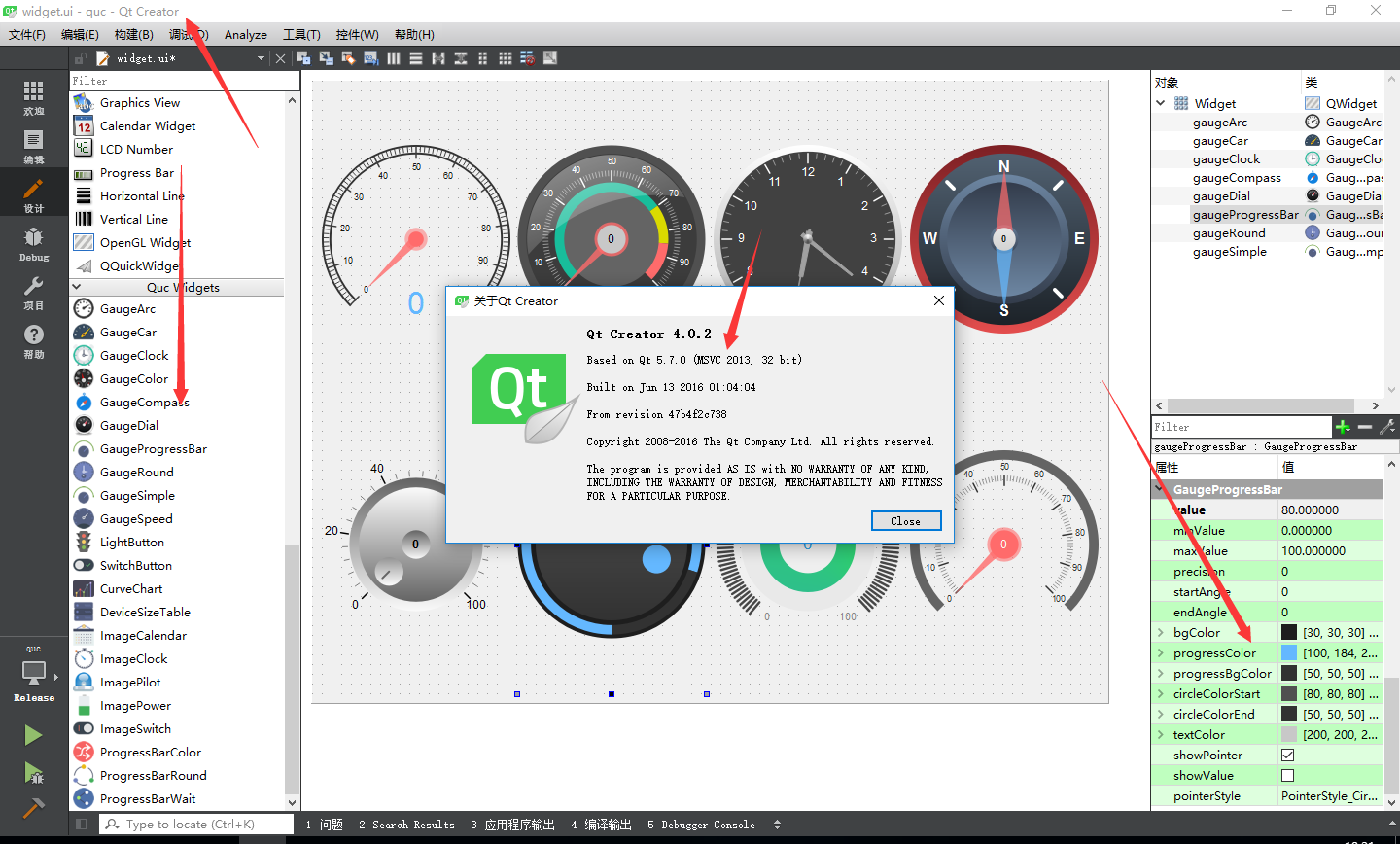

Qt编写自定义控件还是非常简单的，使用也非常简单，唯一要搞清楚的是Qt版本和编译器版本必须完全一致，否则掉进坑里几年都出不来。

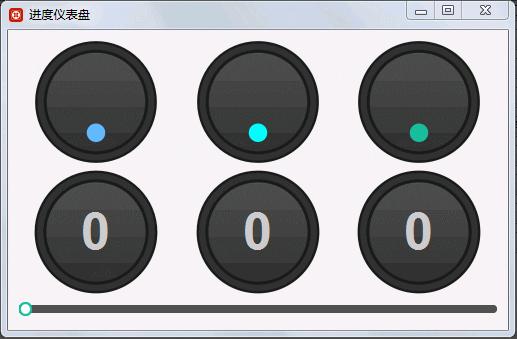

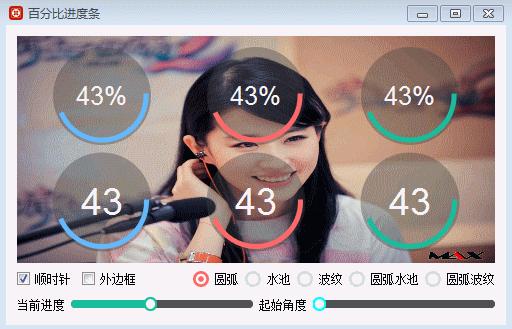

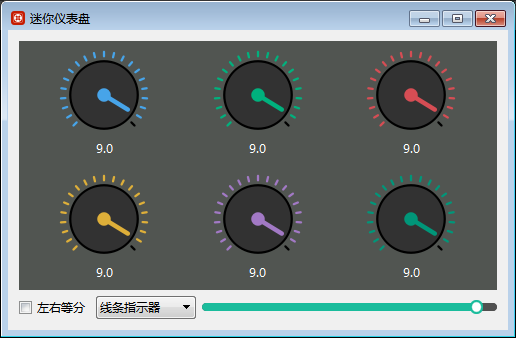

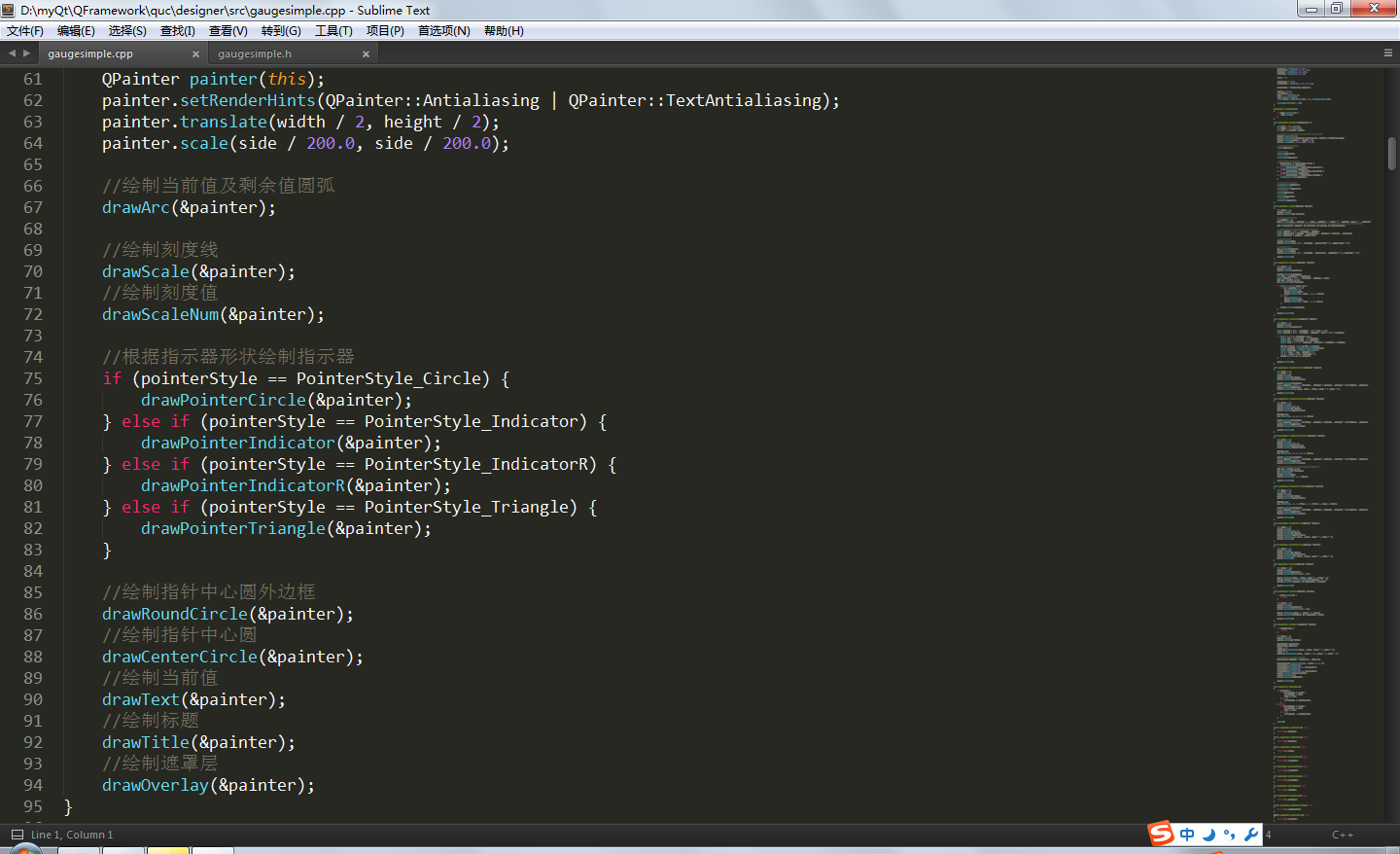

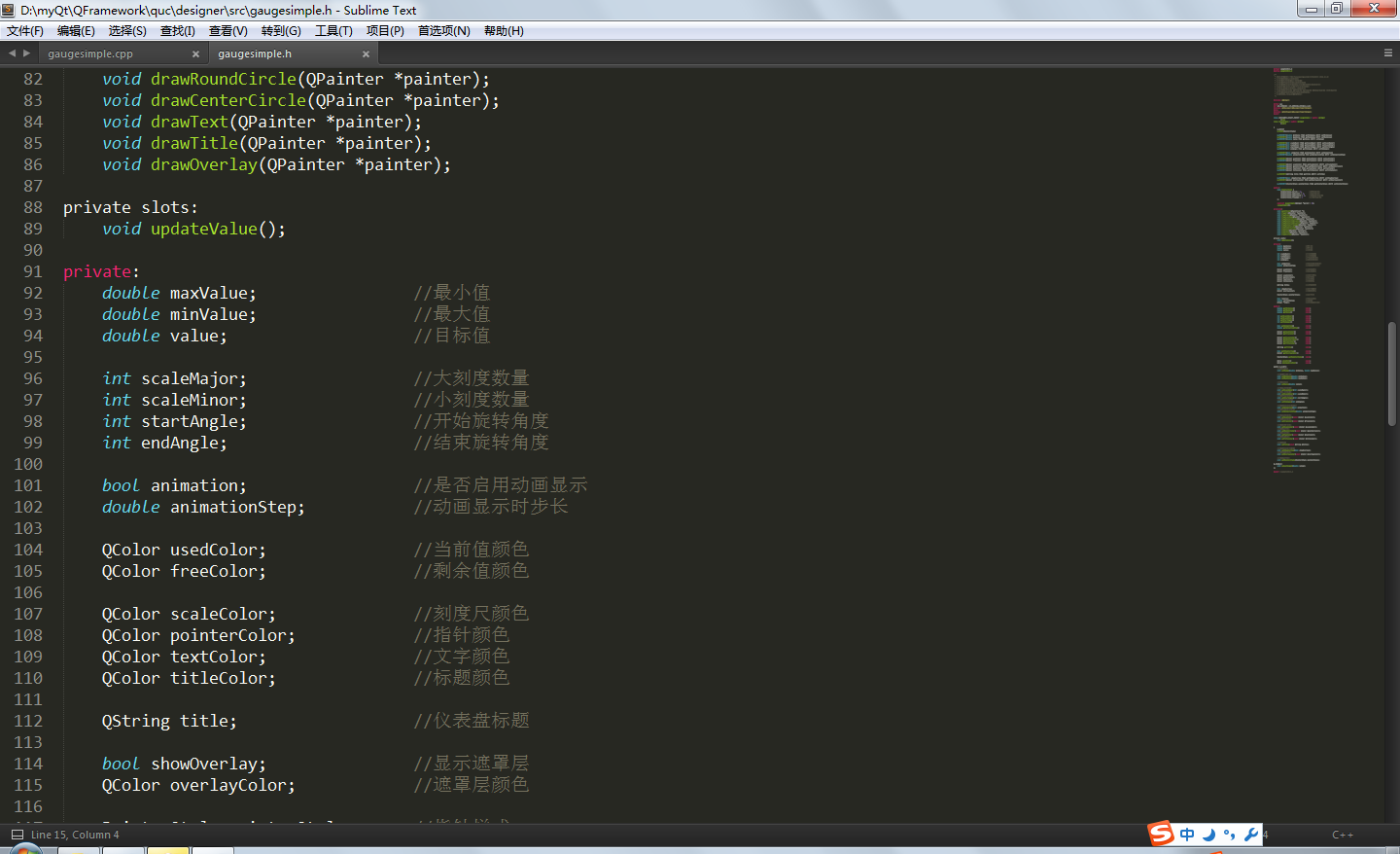

我写的自定义控件。

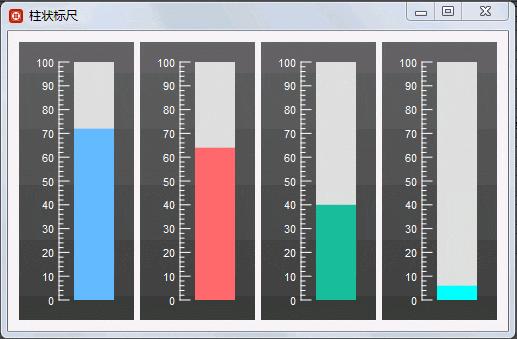

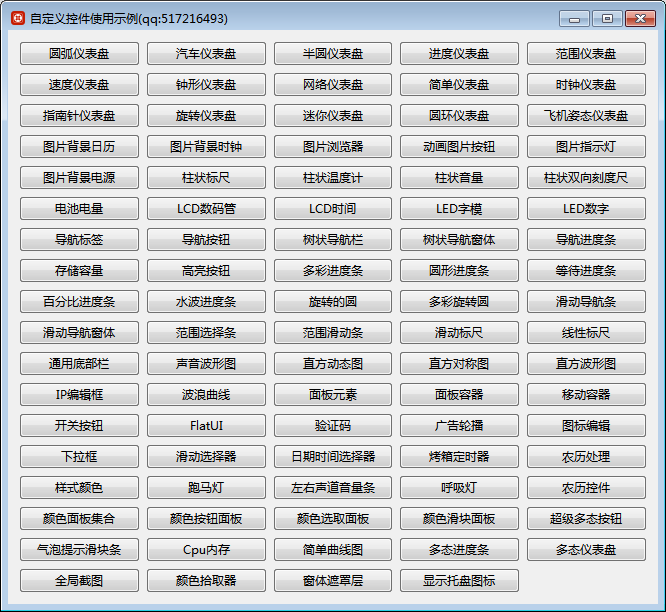

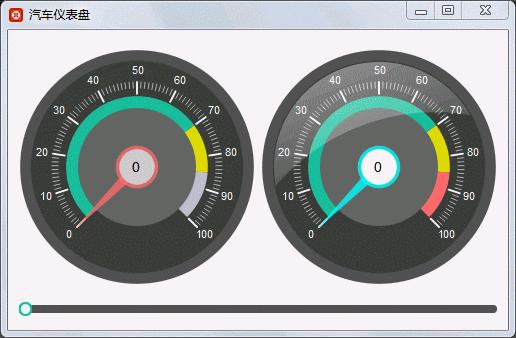

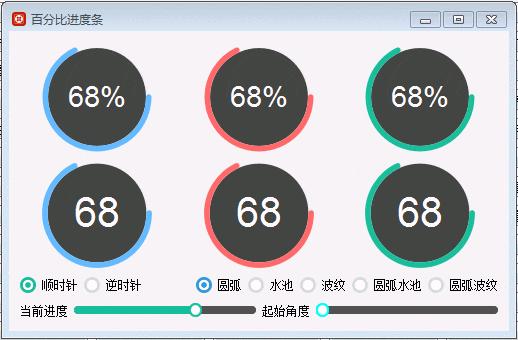

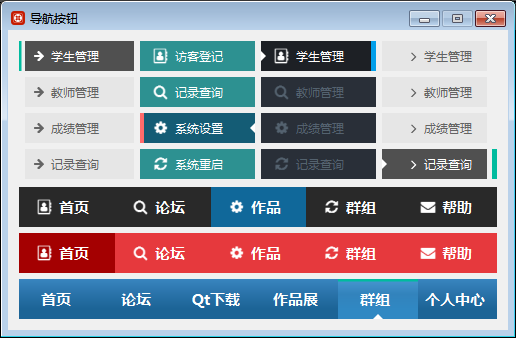

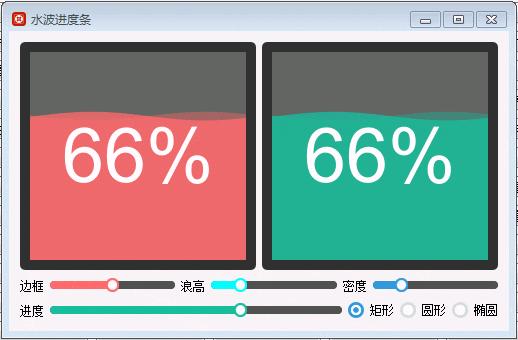

手机上面的APP有很多流行的元素，开关按钮个人非常喜欢，手机QQ、360卫士、金山毒霸等，都有很多开关控制一些操作，在Qt widgets应用项目上，在项目中应用些类似的开关按钮，估计也会为项目增添不少新鲜感。

总结了大部分的开关按钮控件，基本上有两大类，第一类是纯代码绘制，这种对代码的掌控度要求比较高，但是灵活性比较好。第二类是贴图，专业的美工做好的各种状态的背景图片，只需要用代码将该图片画到界面上即可。为了能够涵盖两大类的开关按钮，特意将常见的四种类型（圆角矩形/内圆形/外圆形/图片）都集成到了自定义的开关按钮中。

运行效果：

1：纯代码绘制

纯代码绘制开关按钮，可以很灵活的设置各种颜色、间隔、文字等，还可以产生动画过度的滑动效果。

产生滑动效果采用定时器绘制的方式，自动计算滑块的X轴开始坐标，当滑块的X轴开始坐标到达滑块的X轴结束坐标时停止定时器。

void SwitchButton::updateValue()
    if (checked) {
        if (startX < endX) {
            startX = startX + step;
        } else {
            startX = endX;
            timer->stop();
    } else {
        if (startX > endX) {
            startX = startX - step;
        } else {
            startX = endX;
            timer->stop();
    update();
}

2：贴图绘制

void SwitchButton::drawImage(QPainter *painter)
    painter->save();
    QPixmap pix;
    if (!checked) {
        pix = QPixmap(imageOff);
    } else {
        pix = QPixmap(imageOn);
    //自动等比例平滑缩放居中显示
    int targetWidth = pix.width();
    int targetHeight = pix.height();
    pix = pix.scaled(targetWidth, targetHeight, Qt::KeepAspectRatio, Qt::SmoothTransformation);
    int pixX = rect().center().x() - targetWidth / 2;
    int pixY = rect().center().y() - targetHeight / 2;
    QPoint point(pixX, pixY);
    painter->drawPixmap(point, pix);
    painter->restore();
}

完整代码：

switchbutton.h

#ifndef SWITCHBUTTON_H
#define SWITCHBUTTON_H
 * 作者:feiyangqingyun(QQ:517216493) 2016-11-6
 * 1:可设置开关按钮的样式 圆角矩形/内圆形/外圆形/图片
 * 2:可设置选中和未选中时的背景颜色
 * 3:可设置选中和未选中时的滑块颜色
 * 4:可设置显示的文本
 * 5:可设置滑块离背景的间隔
 * 6:可设置圆角角度
#include <QWidget>
class QTimer;
class SwitchButton: public QWidget
    Q_OBJECT
public:
    enum ButtonStyle {
        ButtonStyle_Rect = 0,     //圆角矩形
        ButtonStyle_CircleIn = 1, //内圆形
        ButtonStyle_CircleOut = 2,//外圆形
        ButtonStyle_Image = 3     //图片
    SwitchButton(QWidget *parent = 0);
    ~SwitchButton();
protected:
    void mousePressEvent(QMouseEvent *);
    void resizeEvent(QResizeEvent *);
    void paintEvent(QPaintEvent *);
    void drawBg(QPainter *painter);
    void drawSlider(QPainter *painter);
    void drawText(QPainter *painter);
    void drawImage(QPainter *painter);
private:
    bool checked;               //是否选中
    ButtonStyle buttonStyle;    //开关按钮样式
    QColor bgColorOff;          //关闭时背景颜色
    QColor bgColorOn;           //打开时背景颜色
    QColor sliderColorOff;      //关闭时滑块颜色
    QColor sliderColorOn;       //打开时滑块颜色
    QColor textColorOff;        //关闭时文本颜色
    QColor textColorOn;         //打开时文本颜色
    QString textOff;            //关闭时显示的文字
    QString textOn;             //打开时显示的文字
    QString imageOff;           //关闭时显示的图片
    QString imageOn;            //打开时显示的图片
    int space;                  //滑块离背景间隔
    int rectRadius;             //圆角角度
    int step;                   //每次移动的步长
    int startX;                 //滑块开始X轴坐标
    int endX;                   //滑块结束X轴坐标
    QTimer *timer;              //定时器绘制
private slots:
    void updateValue();
public:
    bool getChecked()const
        return checked;
    ButtonStyle getButtonStyle()const
        return buttonStyle;
    QColor getBgColorOff()const
        return bgColorOff;
    QColor getBgColorOn()const
        return bgColorOn;
    QColor getSliderColorOff()const
        return sliderColorOff;
    QColor getSliderColorOn()const
        return sliderColorOn;
    QColor getTextColorOff()const
        return textColorOff;
    QColor getTextColorOn()const
        return textColorOn;
    QString getTextOff()const
        return textOff;
    QString getTextOn()const
        return textOn;
    QString getImageOff()const
        return imageOff;
    QString getImageOn()const
        return imageOn;
    int getSpace()const
        return space;
    int getRectRadius()const
        return rectRadius;
public slots:
    //设置是否选中
    void setChecked(bool checked);
    //设置风格样式
    void setButtonStyle(ButtonStyle buttonStyle);
    //设置背景颜色
    void setBgColor(QColor bgColorOff, QColor bgColorOn);
    //设置滑块颜色
    void setSliderColor(QColor sliderColorOff, QColor sliderColorOn);
    //设置文本颜色
    void setTextColor(QColor textColorOff, QColor textColorOn);
    //设置文本
    void setText(QString textOff, QString textOn);
    //设置背景图片
    void setImage(QString imageOff, QString imageOn);
    //设置间隔
    void setSpace(int space);
    //设置圆角角度
    void setRectRadius(int rectRadius);
signals:
    void checkedChanged(bool checked);
#endif // SWITCHBUTTON_H

switchbutton.cpp

#include "switchbutton.h"
#include "qpainter.h"
#include "qevent.h"
#include "qtimer.h"
#include "qdebug.h"
SwitchButton::SwitchButton(QWidget *parent): QWidget(parent)
    checked = false;
    buttonStyle    = ButtonStyle_Rect;
    bgColorOff = QColor(225, 225, 225);
    bgColorOn = QColor(250, 250, 250);
    sliderColorOff = QColor(100, 100, 100);
    sliderColorOn = QColor(100, 184, 255);
    textColorOff = QColor(255, 255, 255);
    textColorOn = QColor(10, 10, 10);
    textOff = "";
    textOn = "";
    imageOff = ":/image/btncheckoff1.png";
    imageOn = ":/image/btncheckon1.png";
    space = 2;
    rectRadius = 5;
    step = width() / 50;
    startX = 0;
    endX = 0;
    timer = new QTimer(this);
    timer->setInterval(5);
    connect(timer, SIGNAL(timeout()), this, SLOT(updateValue()));
    setFont(QFont("Microsoft Yahei", 10));
SwitchButton::~SwitchButton()
void SwitchButton::mousePressEvent(QMouseEvent *)
    checked = !checked;
    emit checkedChanged(checked);
    //每次移动的步长为宽度的 50分之一
    step = width() / 50;
    //状态切换改变后自动计算终点坐标
    if (checked) {
        if (buttonStyle == ButtonStyle_Rect) {
            endX = width() - width() / 2;
        } else if (buttonStyle == ButtonStyle_CircleIn) {
            endX = width() - height();
        } else if (buttonStyle == ButtonStyle_CircleOut) {
            endX = width() - height() + space;
    } else {
        endX = 0;
    timer->start();
void SwitchButton::resizeEvent(QResizeEvent *)
    //每次移动的步长为宽度的 50分之一
    step = width() / 50;
    //尺寸大小改变后自动设置起点坐标为终点
    if (checked) {
        if (buttonStyle == ButtonStyle_Rect) {
            startX = width() - width() / 2;
        } else if (buttonStyle == ButtonStyle_CircleIn) {
            startX = width() - height();
        } else if (buttonStyle == ButtonStyle_CircleOut) {
            startX = width() - height() + space;
    } else {
        startX = 0;
    update();
void SwitchButton::paintEvent(QPaintEvent *)
    //绘制准备工作,启用反锯齿
    QPainter painter(this);
    painter.setRenderHint(QPainter::Antialiasing);
    if (buttonStyle == ButtonStyle_Image) {
        //绘制图片
        drawImage(&painter);
    } else {
        //绘制背景
        drawBg(&painter);
        //绘制滑块
        drawSlider(&painter);
        //绘制文字
        drawText(&painter);
void SwitchButton::drawBg(QPainter *painter)
    painter->save();
    painter->setPen(Qt::NoPen);
    if (!checked) {
        painter->setBrush(bgColorOff);
    } else {
        painter->setBrush(bgColorOn);
    if (buttonStyle == ButtonStyle_Rect) {
        painter->drawRoundedRect(rect(), rectRadius, rectRadius);
    } else if (buttonStyle == ButtonStyle_CircleIn) {
        QRect rect(0, 0, width(), height());
        //半径为高度的一半
        int radius = rect.height() / 2;
        //圆的宽度为高度
        int circleWidth = rect.height();
        QPainterPath path;
        path.moveTo(radius, rect.left());
        path.arcTo(QRectF(rect.left(), rect.top(), circleWidth, circleWidth), 90, 180);
        path.lineTo(rect.width() - radius, rect.height());
        path.arcTo(QRectF(rect.width() - rect.height(), rect.top(), circleWidth, circleWidth), 270, 180);
        path.lineTo(radius, rect.top());
        painter->drawPath(path);
    } else if (buttonStyle == ButtonStyle_CircleOut) {
        QRect rect(space, space, width() - space * 2, height() - space * 2);
        painter->drawRoundedRect(rect, rectRadius, rectRadius);
    painter->restore();
void SwitchButton::drawSlider(QPainter *painter)
    painter->save();
    painter->setPen(Qt::NoPen);
    if (!checked) {
        painter->setBrush(sliderColorOff);
    } else {
        painter->setBrush(sliderColorOn);
    if (buttonStyle == ButtonStyle_Rect) {
        int sliderWidth = width() / 2 - space * 2;
        int sliderHeight = height() - space * 2;
        QRect sliderRect(startX + space, space, sliderWidth , sliderHeight);
        painter->drawRoundedRect(sliderRect, rectRadius, rectRadius);
    } else if (buttonStyle == ButtonStyle_CircleIn) {
        QRect rect(0, 0, width(), height());
        int sliderWidth = rect.height() - space * 2;
        QRect sliderRect(startX + space, space, sliderWidth, sliderWidth);
        painter->drawEllipse(sliderRect);
    } else if (buttonStyle == ButtonStyle_CircleOut) {
        QRect rect(0, 0, width() - space, height() - space);
        int sliderWidth = rect.height();
        QRect sliderRect(startX, space / 2, sliderWidth, sliderWidth);
        painter->drawEllipse(sliderRect);
    painter->restore();
void SwitchButton::drawText(QPainter *painter)
    painter->save();
    if (!checked) {
        painter->setPen(textColorOff);
        painter->drawText(width() / 2, 0, width() / 2 - space, height(), Qt::AlignCenter, textOff);
    } else {
        painter->setPen(textColorOn);
        painter->drawText(0, 0, width() / 2 + space * 2, height(), Qt::AlignCenter, textOn);
    painter->restore();
void SwitchButton::drawImage(QPainter *painter)
    painter->save();
    QPixmap pix;
    if (!checked) {
        pix = QPixmap(imageOff);
    } else {
        pix = QPixmap(imageOn);
    //自动等比例平滑缩放居中显示
    int targetWidth = pix.width();
    int targetHeight = pix.height();
    pix = pix.scaled(targetWidth, targetHeight, Qt::KeepAspectRatio, Qt::SmoothTransformation);
    int pixX = rect().center().x() - targetWidth / 2;
    int pixY = rect().center().y() - targetHeight / 2;
    QPoint point(pixX, pixY);
    painter->drawPixmap(point, pix);
    painter->restore();
void SwitchButton::updateValue()
    if (checked) {
        if (startX < endX) {
            startX = startX + step;
        } else {
            startX = endX;
            timer->stop();
    } else {
        if (startX > endX) {
            startX = startX - step;
        } else {
            startX = endX;
            timer->stop();
    update();
void SwitchButton::setChecked(bool checked)
    if (this->checked != checked) {
        this->checked = checked;
        emit checkedChanged(checked);
        update();
void SwitchButton::setButtonStyle(SwitchButton::ButtonStyle buttonStyle)
    this->buttonStyle = buttonStyle;
    update();
void SwitchButton::setBgColor(QColor bgColorOff, QColor bgColorOn)
    this->bgColorOff = bgColorOff;
    this->bgColorOn = bgColorOn;
    update();
void SwitchButton::setSliderColor(QColor sliderColorOff, QColor sliderColorOn)
    this->sliderColorOff = sliderColorOff;
    this->sliderColorOn = sliderColorOn;
    update();
void SwitchButton::setTextColor(QColor textColorOff, QColor textColorOn)
    this->textColorOff = textColorOff;
    this->textColorOn = textColorOn;
    update();
void SwitchButton::setText(QString textOff, QString textOn)
    this->textOff = textOff;
    this->textOn = textOn;
    update();
void SwitchButton::setImage(QString imageOff, QString imageOn)
    this->imageOff = imageOff;
    this->imageOn = imageOn;
    update();
void SwitchButton::setSpace(int space)
    this->space = space;
    update();
