Grid面板

网格面板是所有面板中最复杂但用途最广泛的面板。网格面板可用于设计复杂的用户界面，我们需要将多个元素以行和列的表格格式放置。

XAML 中的 Grid 元素表示一个 Grid 面板。以下代码片段创建一个 Grid 元素并设置其背景、宽度、高度、垂直和水平对齐属性。

<Grid Name="GridPanel" Background="Blue" Width="280" Height="220" VerticalAlignment="Top" HorizontalAlignment="Center" >   </Grid>

输出如图所示。

Grid 属性

网格具有三个主要属性，RowDefinitions、ColumnDefinitions 和 ShowGridLines。RowDefinitions 属性是 RowDefinitions 的集合。ColumnDefinitions 属性表示 ColumnDefinition 的集合。ShowGridLines 属性确定 Grid 面板的网格线是否可见。

创建 Grid

格 XAML 中的 Grid 元素表示 WPF 网格控件。下面的代码片段创建一个 Grid 控件，设置它的宽度和前景色，并确保网格线可见。

<Grid Name="MCGrid" Width="400" Background="LightSteelBlue" ShowGridLines="True" \>

ColumnDefinitions 属性用于添加列，RowDefinitions 属性用于将行添加到 Grid。以下代码片段将三列和三行添加到网格中。

<Grid.ColumnDefinitions>
    <ColumnDefinition />
    <ColumnDefinition />
    <ColumnDefinition />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
    <RowDefinition Height="45" />
    <RowDefinition Height="45" />
    <RowDefinition Height="45" />
</Grid.RowDefinitions>

WPF 中的任何控件都可以使用其 Grid.Row 和 Grid.Column 属性放置在网格中，这些属性表示控件将放置在哪一列和哪一行。行和列的值以 0 开头。这意味着，如果有网格中的三列，第一列将由数字 0 表示。下面的代码片段将 TextBlock 控件放在第二行第三列的单元格中。

<TextBlock Grid.Row= “1”  Grid.Column= “2”  Foreground= “Green”  Text= “Age”  Height= “20”  VerticalAlignment= “Top”  />

网格单元格中创建具有三列三行和一些文本数据的 Grid 的完整代码。

<Window x:Class="GridSample.Window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="Window1" Height="300" Width="450" WindowStyle="ThreeDBorderWindow">
    <Grid Name="MCGrid" Width="400" Background="LightSteelBlue" ShowGridLines="True">
        <Grid.ColumnDefinitions>
            <ColumnDefinition />
            <ColumnDefinition />
            <ColumnDefinition />
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="45" />
            <RowDefinition Height="45" />
            <RowDefinition Height="45" />
        </Grid.RowDefinitions>
        <TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="0" Foreground="Green"
Text="Author Name" Height="20" VerticalAlignment="Top" />
        <TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="1" Foreground="Green"
Text="Age" Height="20" VerticalAlignment="Top" />
        <TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="2" Foreground="Green"
Text="Book" Height="20" VerticalAlignment="Top"/>
        <TextBlock FontSize="12" Grid.Row="1" Grid.Column="0">Mahesh Chand</TextBlock>
        <TextBlock FontSize="12" Grid.Row="1" Grid.Column="1">33</TextBlock>
        <TextBlock FontSize="12" Grid.Row="1" Grid.Column="2">GDI+ Programming</TextBlock>
        <TextBlock FontSize="12" Grid.Row="2" Grid.Column="0">Mike Gold</TextBlock>
        <TextBlock FontSize="12" Grid.Row="2" Grid.Column="1">35</TextBlock>
        <TextBlock FontSize="12" Grid.Row="2" Grid.Column="2">Programming C#</TextBlock>
    </Grid>
</Window>

动态创建 Grid

WPF中的Grid类表示一个 Grid 控件。以下代码片段创建了一个 Grid 控件，设置它的宽度、水平对齐、垂直对齐并显示网格线并设置背景颜色。

Grid DynamicGrid = new Grid();
DynamicGrid.Width = 400;
DynamicGrid.HorizontalAlignment = HorizontalAlignment.Left;
DynamicGrid.VerticalAlignment = VerticalAlignment.Top;
DynamicGrid.ShowGridLines = true;
DynamicGrid.Background = new SolidColorBrush(Colors.LightSteelBlue);

代码片段将三列和三行添加到Grid。

// Create Columns
ColumnDefinition gridCol1 = new ColumnDefinition();
ColumnDefinition gridCol2 = new ColumnDefinition();
ColumnDefinition gridCol3 = new ColumnDefinition();
DynamicGrid.ColumnDefinitions.Add(gridCol1);
DynamicGrid.ColumnDefinitions.Add(gridCol2);
DynamicGrid.ColumnDefinitions.Add(gridCol3);
// Create Rows
RowDefinition gridRow1 = new RowDefinition();
gridRow1.Height = new GridLength(45);
RowDefinition gridRow2 = new RowDefinition();
gridRow2.Height = new GridLength(45);
RowDefinition gridRow3 = new RowDefinition();
gridRow3.Height = new GridLength(45);
DynamicGrid.RowDefinitions.Add(gridRow1);
DynamicGrid.RowDefinitions.Add(gridRow2);
DynamicGrid.RowDefinitions.Add(gridRow3);

将行和列添加到 Grid 后，您可以使用 SetRow 和 SetColumn 方法将任何内容添加到 Grid 单元格。SetRow 和 SetColumn 方法将第一个参数作为控件名称，将第二个参数分别作为行号和列号。清单 4 中的以下代码片段创建一个 TextBlock 控件并将其显示在代表 Grid 的第一行和第一列的 Cell(0,0) 中。

// Add first column header
TextBlock txtBlock1 = new TextBlock();
txtBlock1.Text = "Author Name";
txtBlock1.FontSize = 14;
txtBlock1.FontWeight = FontWeights.Bold;
txtBlock1.Foreground = new SolidColorBrush(Colors.Green);
txtBlock1.VerticalAlignment = VerticalAlignment.Top;
Grid.SetRow(txtBlock1, 0);
Grid.SetColumn(txtBlock1, 0);

完整的代码。

private void CreateDynamicWPFGrid()
    // Create the Grid
    Grid DynamicGrid = new Grid();
    DynamicGrid.Width = 400;
    DynamicGrid.HorizontalAlignment = HorizontalAlignment.Left;
    DynamicGrid.VerticalAlignment = VerticalAlignment.Top;
    DynamicGrid.ShowGridLines = true;
    DynamicGrid.Background = new SolidColorBrush(Colors.LightSteelBlue);
    // Create Columns
    ColumnDefinition gridCol1 = new ColumnDefinition();
    ColumnDefinition gridCol2 = new ColumnDefinition();
    ColumnDefinition gridCol3 = new ColumnDefinition();
    DynamicGrid.ColumnDefinitions.Add(gridCol1);
    DynamicGrid.ColumnDefinitions.Add(gridCol2);
    DynamicGrid.ColumnDefinitions.Add(gridCol3);
    // Create Rows
    RowDefinition gridRow1 = new RowDefinition();
    gridRow1.Height = new GridLength(45);
    RowDefinition gridRow2 = new RowDefinition();
    gridRow2.Height = new GridLength(45);
    RowDefinition gridRow3 = new RowDefinition();
    gridRow3.Height = new GridLength(45);
    DynamicGrid.RowDefinitions.Add(gridRow1);
    DynamicGrid.RowDefinitions.Add(gridRow2);
    DynamicGrid.RowDefinitions.Add(gridRow3);
    // Add first column header
    TextBlock txtBlock1 = new TextBlock();
    txtBlock1.Text = "Author Name";
    txtBlock1.FontSize = 14;
    txtBlock1.FontWeight = FontWeights.Bold;
    txtBlock1.Foreground = new SolidColorBrush(Colors.Green);
    txtBlock1.VerticalAlignment = VerticalAlignment.Top;
    Grid.SetRow(txtBlock1, 0);
    Grid.SetColumn(txtBlock1, 0);
    // Add second column header
    TextBlock txtBlock2 = new TextBlock();
    txtBlock2.Text = "Age";
    txtBlock2.FontSize = 14;
    txtBlock2.FontWeight = FontWeights.Bold;
    txtBlock2.Foreground = new SolidColorBrush(Colors.Green);
    txtBlock2.VerticalAlignment = VerticalAlignment.Top;
    Grid.SetRow(txtBlock2, 0);
    Grid.SetColumn(txtBlock2, 1);
    // Add third column header
    TextBlock txtBlock3 = new TextBlock();
    txtBlock3.Text = "Book";
    txtBlock3.FontSize = 14;
    txtBlock3.FontWeight = FontWeights.Bold;
    txtBlock3.Foreground = new SolidColorBrush(Colors.Green);
    txtBlock3.VerticalAlignment = VerticalAlignment.Top;
    Grid.SetRow(txtBlock3, 0);
    Grid.SetColumn(txtBlock3, 2);
    //// Add column headers to the Grid
    DynamicGrid.Children.Add(txtBlock1);
    DynamicGrid.Children.Add(txtBlock2);
    DynamicGrid.Children.Add(txtBlock3);
    // Create first Row
    TextBlock authorText = new TextBlock();
    authorText.Text = "Mahesh Chand";
    authorText.FontSize = 12;
    authorText.FontWeight = FontWeights.Bold;
    Grid.SetRow(authorText, 1);
    Grid.SetColumn(authorText, 0);
    TextBlock ageText = new TextBlock();
    ageText.Text = "33";
    ageText.FontSize = 12;
    ageText.FontWeight = FontWeights.Bold;
    Grid.SetRow(ageText, 1);
    Grid.SetColumn(ageText, 1);
    TextBlock bookText = new TextBlock();
    bookText.Text = "GDI+ Programming";
    bookText.FontSize = 12;
    bookText.FontWeight = FontWeights.Bold;
    Grid.SetRow(bookText, 1);
    Grid.SetColumn(bookText, 2);
    // Add first row to Grid
    DynamicGrid.Children.Add(authorText);
    DynamicGrid.Children.Add(ageText);
    DynamicGrid.Children.Add(bookText);
    // Create second row
    authorText = new TextBlock();
    authorText.Text = "Mike Gold";
    authorText.FontSize = 12;
    authorText.FontWeight = FontWeights.Bold;
    Grid.SetRow(authorText, 2);
    Grid.SetColumn(authorText, 0);
    ageText = new TextBlock();
    ageText.Text = "35";
    ageText.FontSize = 12;
    ageText.FontWeight = FontWeights.Bold;
    Grid.SetRow(ageText, 2);
    Grid.SetColumn(ageText, 1);
    bookText = new TextBlock();
    bookText.Text = "Programming C#";
    bookText.FontSize = 12;
    bookText.FontWeight = FontWeights.Bold;
    Grid.SetRow(bookText, 2);
    Grid.SetColumn(bookText, 2);
    // Add second row to Grid
    DynamicGrid.Children.Add(authorText);
    DynamicGrid.Children.Add(ageText);
    DynamicGrid.Children.Add(bookText);
    // Display grid into a Window
    RootWindow.Content = DynamicGrid;

管理列宽和行高

ColumnDefinition 具有三个属性，用于管理网格中列的宽度。这些属性是 Width、MaxWidth 和 MinWidth。Width 属性表示列的宽度。MaxWidth 和 MinWidth 用于设置列的最大和最小宽度。

RowDefinition 具有三个属性，用于管理 Grid 中行的高度。这些属性是高度、最大高度和最小高度。Height 属性表示行的高度。MaxHeight 和 MinHeight 用于设置行的最大和最小高度。

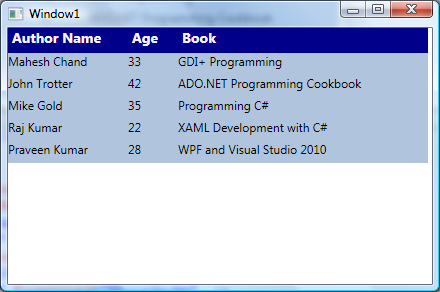

代码在设计时使用 XAML 设置 Grid 面板中的列宽和行高。

<Grid Name="MCGrid" VerticalAlignment="Top"
HorizontalAlignment="Left" Background="LightSteelBlue" ShowGridLines="False">
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="120"/>
        <ColumnDefinition Width="50" />
        <ColumnDefinition Width="250"/>
    </Grid.ColumnDefinitions>
    <Grid.RowDefinitions>
        <RowDefinition Height="25" />
        <RowDefinition Height="22" />
        <RowDefinition Height="22" />
        <RowDefinition Height="22" />
        <RowDefinition Height="22" />
        <RowDefinition Height="22" />
    </Grid.RowDefinitions>
    <TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="0"
Text=" Author Name" Height="25"
VerticalAlignment="Top"
Background="DarkBlue" Foreground="WhiteSmoke" />
    <TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="1"
Text=" Age" Height="25" VerticalAlignment="Top"
Background="DarkBlue" Foreground="WhiteSmoke" />
    <TextBlock FontSize="14" FontWeight="Bold" Grid.Row="0" Grid.Column="2"
Text=" Book" Height="25" VerticalAlignment="Top"
Background="DarkBlue" Foreground="WhiteSmoke" />
    <TextBlock Grid.Row="1" Grid.Column="0">Mahesh Chand</TextBlock>
    <TextBlock Grid.Row="1" Grid.Column="1">33</TextBlock>
    <TextBlock Grid.Row="1" Grid.Column="2">GDI+ Programming</TextBlock>
    <TextBlock Grid.Row="2" Grid.Column="0">John Trotter</TextBlock>
    <TextBlock Grid.Row="2" Grid.Column="1">42</TextBlock>
    <TextBlock Grid.Row="2" Grid.Column="2">ADO.NET Programming Cookbook</TextBlock>
    <TextBlock Grid.Row="3" Grid.Column="0">Mike Gold</TextBlock>
    <TextBlock Grid.Row="3" Grid.Column="1">35</TextBlock>
    <TextBlock Grid.Row="3" Grid.Column="2">Programming C#</TextBlock>
    <TextBlock Grid.Row="4" Grid.Column="0">Raj Kumar</TextBlock>
    <TextBlock Grid.Row="4" Grid.Column="1">22</TextBlock>
    <TextBlock Grid.Row="4" Grid.Column="2">XAML Development with C#</TextBlock>
    <TextBlock Grid.Row="5" Grid.Column="0">Praveen Kumar</TextBlock>
    <TextBlock Grid.Row="5" Grid.Column="1">28</TextBlock>
    <TextBlock Grid.Row="5" Grid.Column="2">WPF and Visual Studio 2010</TextBlock>
</Grid>

使用 GridSplitter 调整 WPF 网格行的大小

<Grid Name="DynamicGrid" Width="466" Background="LightSteelBlue" ShowGridLines="True"
Canvas.Top="119" Canvas.Left="8" Height="200">
    <Grid.ColumnDefinitions>
        <ColumnDefinition />
        <ColumnDefinition />
        <ColumnDefinition />
    </Grid.ColumnDefinitions>
    <Grid.RowDefinitions>
        <RowDefinition Height="50*" />
        <RowDefinition Height="Auto" />
        <RowDefinition Height="50*" />
    </Grid.RowDefinitions>
    <GridSplitter
        ResizeDirection="Rows"
        Grid.Column="0"
        Grid.ColumnSpan="10"
        Grid.Row="1"
        Width="Auto"
        Height="3"
        HorizontalAlignment="Stretch"
        VerticalAlignment="Stretch"
        Margin="0"
        Background="Green"/>
</Grid>

格式化网格 Grid

的 Background 属性设置 Grid 的背景颜色。下面的代码使用线性渐变画笔来绘制网格的背景。

<Grid.Background>
    <LinearGradientBrush StartPoint="0,0" EndPoint="1,1" >
        <GradientStop Color="Blue" Offset="0.1" />
        <GradientStop Color="Orange" Offset="0.25" />
