sortable.js 的研究

Sortable —是一个JavaScript库，用于在现代浏览器和触摸设备上对拖放列表进行重新排序。无需jQuery。支持Meteor，AngularJS，React，Polymer，Vue，Ember，Knockout和任何CSS库，例如Bootstrap。 https:// sortablejs.github.io/So rtable/

demo 网站 http:// sortablejs.github.io/So rtable/

一看这解释感觉就是很棒的感觉

特征

• 支持触摸设备和 现代 浏览器（包括IE9）
• 可以从一个列表拖动到另一个列表或在同一列表内
• 移动项目时的CSS动画
• 支持拖动手柄 和可选文本 （比voidberg的html5sortable更好）
• 智能自动滚动
• 高级交换检测
• 流畅的动画
• 多拖动 支持
• 支持CSS转换
• 使用原生HTML5拖放API构建
• 支持
• Meteor
• Angular
• 2.0+
• 1.*
• React
• ES2015+
• Mixin
• Knockout
• Polymer
• Vue
• Ember
• 支持任何CSS库，例如 Bootstrap
• 简单的API
• 支持 插件
• CDN
• 不需要jQuery（但有 支持 ）
• 打字稿定义在 @types/sortablejs

文章

• Dragging Multiple Items in Sortable (April 26, 2019)
• Swap Thresholds and Direction (December 2, 2018)
• Sortable v1.0 — New capabilities (December 22, 2014)
• Sorting with the help of HTML5 Drag'n'Drop API (December 23, 2013)

安装

npm install sortablejs --save

导入

// Default SortableJS
import Sortable from 'sortablejs';
// Core SortableJS (without default plugins)
import Sortable from 'sortablejs/modular/sortable.core.esm.js';
// Complete SortableJS (with all plugins)
import Sortable from 'sortablejs/modular/sortable.complete.esm.js';

插件导入

// Cherrypick extra plugins
import Sortable, { MultiDrag, Swap } from 'sortablejs';
Sortable.mount(new MultiDrag(), new Swap());
// Cherrypick default plugins
import Sortable, { AutoScroll } from 'sortablejs/modular/sortable.core.esm.js';
Sortable.mount(new AutoScroll());

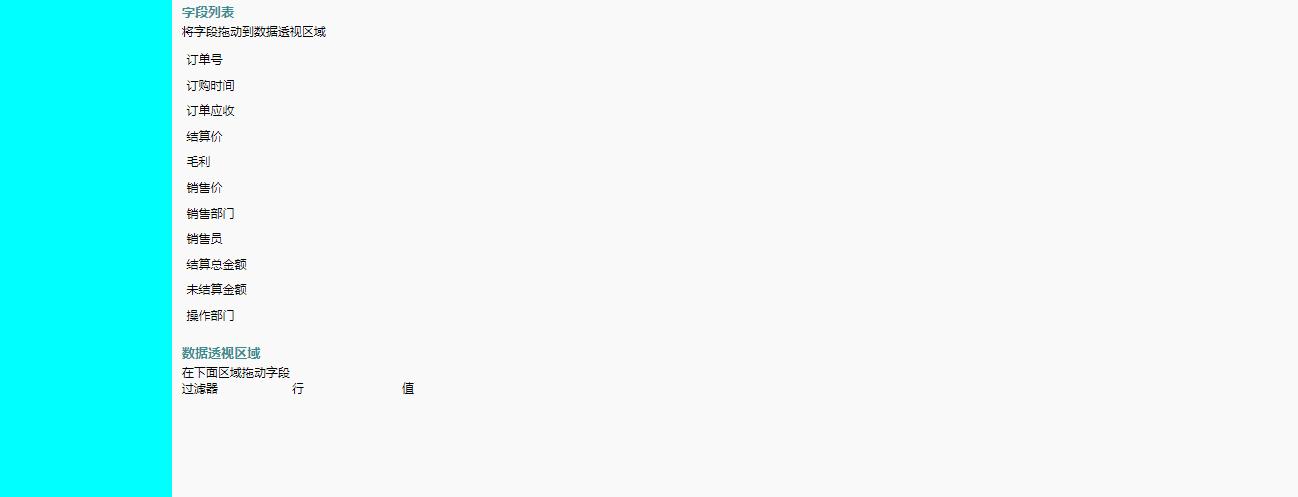

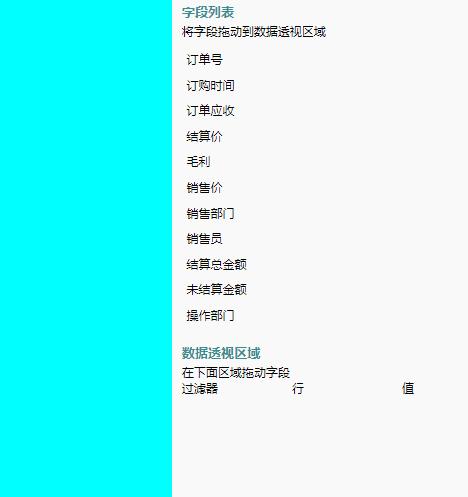

基本模板以及样式代码

<template>
  <div @click="reportClick" class="report-wrap">
    <!-- v-if="ufd.isInit" v-loading="!ufd.isInit" -->
    <div class="report-container">报表</div>
    <div class="select-container">
      <div class="key-list-content">
        <h3 class="key-list-title">字段列表</h3>
        <div class="key-list">
          <p class="key-list-tip">将字段拖动到数据透视区域</p>
          <ul :style="styleUl" @mouseenter="ulEnter" @mouseleave="ulLeave" class="key" id="key">
            <!-- <li
              :data-id="li['tableColumnCtlId']"
              :data-label="li['columnName']"
              :data-value="li['dbFieldName']"
              :key="index"
              v-for="(li,index) in ufd.columns.order"
            >{{li['columnName']}}</li>-->
              :data-id="li['id']"
              :data-label="li['labelKey']"
              :data-value="li['valueKey']"
              :key="index"
              data-fun-name="sum"
              v-for="(li,index) in options"
            >{{li['labelKey']}}</li>
      <div class="data-view-content">
        <h3 class="key-list-title">数据透视区域</h3>
        <div class="data-view">
          <p class="data-view-tip">在下面区域拖动字段</p>
          <div class="view">
            <div class="select-view-wrap same-wrap">
              <p class="select-view-title">过滤器</p>
              <div class="select-view same">
                <ul @click.stop="select" class="select" data-id="filter"></ul>
            <div class="row-view-wrap same-wrap">
              <p class="row-view-title">行</p>
              <div class="row-view other">
                <ul @click.stop="row" class="row" data-id="row"></ul>
            <div class="what-view-wrap same-wrap">
              <p class="what-view-title">值</p>
              <div class="what-view same">
                <ul @click.stop="what" class="what" data-id="value"></ul>
      <!-- 更新按钮 start -->
      <div class="update">
        <button @click="update">更新</button>
      <!-- 更新按钮 end -->
    <!-- 右键 出现 menu 菜单 start -->
    <div id="menu" v-show="menuShow">
        :class="'menu'"
        :key="index"
        @click.stop="menuClick($event, index, item)"
        v-for="(item, index) in menus"
      >{{item.value}}</div>
    <!-- 右键 出现 menu 菜单 end -->
    <!-- 字段设置 start -->
    <div @click.stop class="setting" v-if="settingShow">
      <p class="title">字段设置</p>
      <div class="setting-content">
        <p class="origin-name">
          原名称:
          <span>{{originName}}</span>
        <p class="setting-name">
          自定义名称:
          <input type="text" v-model="settingName" />
        <h5 class="setting-select-title">分类汇总</h5>
        <div @click.stop class="select-wrap">
          <span>选择一个函数:</span>
          <div class="select-content">
            <select class="select" v-model="selects">
              <option
                :data-id="item.id"
                :data-label="item.label"
                :data-value="item.value"
                :value="item.label"
                v-for="(item, index) in settings"
              >{{item.value}}</option>
            </select>
        <div class="select-button">
          <button @click.stop="confirm" class="confirm">确定</button>
          <button @click.stop="cancel" class="cancel">取消</button>
    <!-- 字段设置 end -->
</template>
<style lang="scss" scoped>
.report-wrap {
  width: 100vw;
  height: 100vh;
  display: flex;
  .report-container {
    width: 70vw;
    height: 100%;
    background-color: aqua;
  .select-container {
    box-sizing: border-box;
    padding: 12px;
    width: 25vw;
    height: 100%;
    h3.key-list-title {
      color: rgb(56, 141, 145);
      margin-bottom: 4px;
    .key-list {
      ul.key {
        background-color: #fff;
        height: 355px;
        overflow: hidden;
        margin-top: 6px;
        display: flex;
        flex-flow: column;
        li {
          padding: 6px;
          cursor: -webkit-grab;
        li:hover {
          background-color: rgb(230, 230, 230);
    .data-view-content {
      margin-top: 20px;
      box-sizing: border-box;
      .view {
        box-sizing: border-box;
        display: flex;
        justify-content: space-around;
        .other {
          height: 150px;
          background-color: #fff;
          overflow-y: auto;
          ul {
            box-sizing: border-box;
            padding: 2px;
            li {
              position: relative;
              box-sizing: border-box;
              padding: 2px;
              border: 1px solid rgb(230, 230, 230);
              background-color: #fff;
              margin-bottom: 2px;
              color: rgb(102, 102, 102);
              font-size: 14px;
            li:last-child {
              margin-bottom: 0;
        .other:last-child {
          margin-bottom: 0;
        .same {
          height: 150px;
          background-color: #fff;
          overflow-y: auto;
          ul {
            box-sizing: border-box;
            padding: 2px;
            li {
              position: relative;
              box-sizing: border-box;
              padding: 2px;
              border: 1px solid rgb(230, 230, 230);
              background-color: #fff;
              margin-bottom: 2px;
              color: rgb(102, 102, 102);
              font-size: 14px;
              &:after {
                content: '';
                position: absolute;
                top: 10px;
                right: 5px;
                width: 0;
                height: 0;
                border-right: 4px solid transparent;
                border-left: 4px solid transparent;
                border-top: 4px solid rgb(102, 102, 102);
            li:last-child {
              margin-bottom: 0;
        .same:last-child {
          margin-right: 0;
        .same-wrap {
          margin-right: 10px;
        .same-wrap:last-child {
          margin-right: 0;
        .select-view-wrap {
          width: calc(50%);
        .row-view-wrap {
          width: calc(50%);
        .what-view-wrap {
          width: calc(50%);
    .update {
      padding: 10px;
  /*css代码*/
  #menu {
    width: 0; /*设置为0 隐藏自定义菜单*/
    height: auto;
    overflow: hidden; /*隐藏溢出的元素*/
    box-shadow: 0 1px 1px #888, 1px 0 1px #ccc;
    position: absolute; /*自定义菜单相对与body元素进行定位*/
    background-color: #fff;
    z-index: 100;
    .menu {
      width: 130px;
      height: 25px;
      line-height: 25px;
      padding: 0 10px;
      cursor: pointer;
    .menu:hover {
      background-color: rgb(230, 230, 230);
    .disabled {
      width: 130px;
      height: 25px;
      line-height: 25px;
      padding: 0 10px;
      color: rgb(187, 187, 187);
      pointer-events: none;
      cursor: default;
  // setting 字段设置
  .setting {
    position: absolute;
    box-sizing: border-box;
    top: 50%;
    left: 50%;
    z-index: 100;
    margin-top: -267px;
    margin-left: -240px;
    width: 480px;
    height: 534px;
    background-color: rgb(240, 240, 240);
    .title {
      background-color: #fff;
      height: 25px;
      line-height: 25px;
      text-indent: 25px;
    .setting-content {
      box-sizing: border-box;
      padding: 7px;
      .origin-name {
        padding: 5px 0 5px 0;
      .setting-name {
        padding: 5px 0 5px 0;
      .setting-select-title {
        padding: 5px 0 5px 0;
        border-bottom: 1px solid rgb(160, 160, 160);
      .select-wrap {
        padding: 30px 0 0 30px;
        .select-content {
          margin-top: 10px;
          width: 150px;
          height: 30px;
          select {
            display: inline-block;
            width: 100%;
            height: 100%;
    .select-button {
      padding: 10px;
      float: right;
      button {
        outline: none;
        width: 80px;
        height: 30px;
        &.confirm {
          background-color: rgb(229, 241, 251);
          border: 1px solid rgb(0, 120, 215);
        &.cancel {
          margin-left: 10px;
</style>

参数一一说明

1 evt 探索

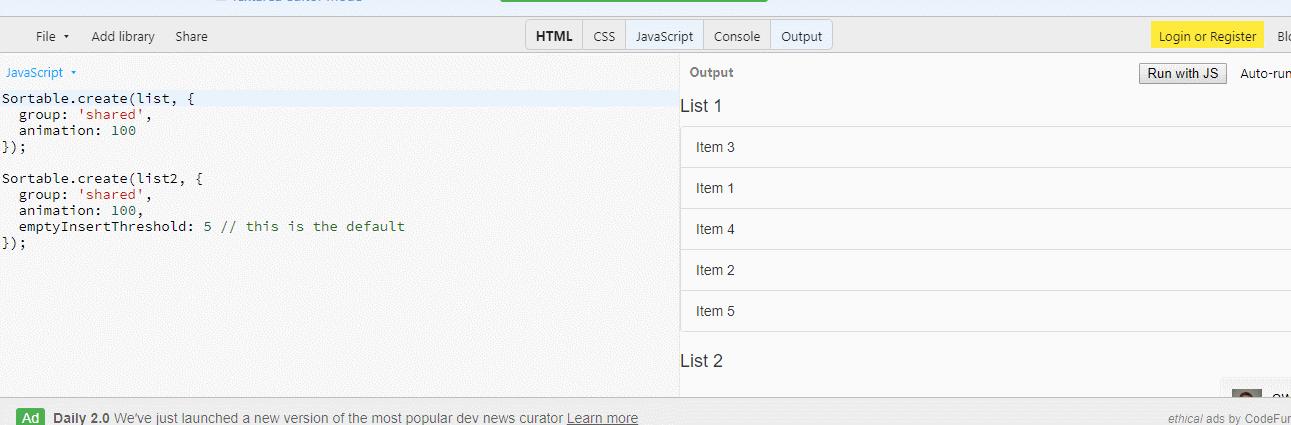

2 group 分组

要将元素从一个列表拖到另一个列表中，两个列表必须具有相同的 group 值。您还可以定义列表是否可以放弃，给予和保留副本（ clone ）以及接收元素。

• name `string` -- group name
• pull `true|false|["foo", "bar"]|'clone'|function` 表示可以从列表中移出
• put `true|false|["baz", "qux"]|function` 是可以从其他列表中添加元素，还是可以从中添加元素的组名数组
• revertClone： boolean —在移动到另一个列表后，将克隆的元素恢复到初始位置

dragUlKey() {
      const ulKey = document.getElementById('key')
      const self = this
      new Sortable(ulKey, {
        group: { name: 'shared', pull: 'clone', put: false },
        animation: 150,
        sort: false, // To disable sorting: set sort to false,
        // Element dragging ended

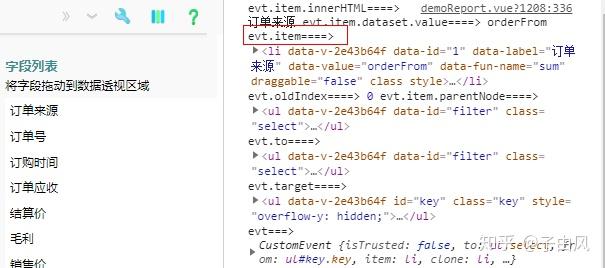

        onEnd: function(/**Event*/ evt) {
          // console.log(
          //   "evt.item.innerHTML====>",
          //   evt.item.innerHTML,
          //   "evt.item.dataset.value====>",
          //   evt.item.dataset.value,
          //   "evt.item====>",
          //   evt.item,
          //   "evt.oldIndex====>",
          //   evt.oldIndex,
          //   "evt.item.children[0]====>",
          //   evt.item.children[0],
          //   "evt.item.children[0].children[0]====>",
          //   evt.item.children[0].children[0],
          //   "evt.item.parentNode====>",
          //   evt.item.parentNode,
          //   "evt.to====>",
          //   evt.to,
          //   "evt.target====>",
          //   evt.target,
          //   "evt===>",
          //   evt
          // // );

我们在加上 revertClone: true

pull, put 可以为 funtion 这个就扩大了拖拽放置的功能了，显得没那么死板，为什么呢？我们可以根据自己需要来判断自己拖拽的项目需要放置在那个盒子里面，不许放置在那个盒子里面，或者说那个盒子不允许 clone，那个盒子允许 clone

dragSelectView() {
      const ulKey = document.querySelector('.select-view ul.select')
      const self = this
      new Sortable(ulKey, {
        animation: 150,
        group: {
          name: 'shared',
          put: function(to, from, target) {
            for (let i = 0; i < to.el.childNodes.length; i++) {
              if (to.el.childNodes[i].dataset.value === target.dataset.value) {
                return false
            return true
        sort: true,
        removeOnSpill: true, // Enable plugin
        onSpill: function(evt) {
          console.log('evt.to===>', evt.to, evt.from)
          if (evt.to.dataset.id === evt.from.dataset.id) {
            this.options.removeOnSpill = true
          } else {
            this.options.removeOnSpill = false
        onEnd: function(evt) {
          console.log('evt update====>dragSelectView', evt.item)
        onUpdate: function(evt) {},

当我们重复拖拽同一个项目的时候，只允许放置一次

3 sort: true 表示可以排序，sort: false 表示不能排序

4 delay: number 定义排序开始时间的时间（以毫秒为单位）。不幸的是，由于浏览器的限制，使用本地拖放功能无法在IE或Edge上进行延迟

Sortable.create(list, {
  delay: 400

似乎不让我拖拽

delayOnTouchOnly 选项

是否仅在用户使用触摸（例如，在移动设备上）时才应用延迟。在任何其他情况下，都不会延迟。默认为 false

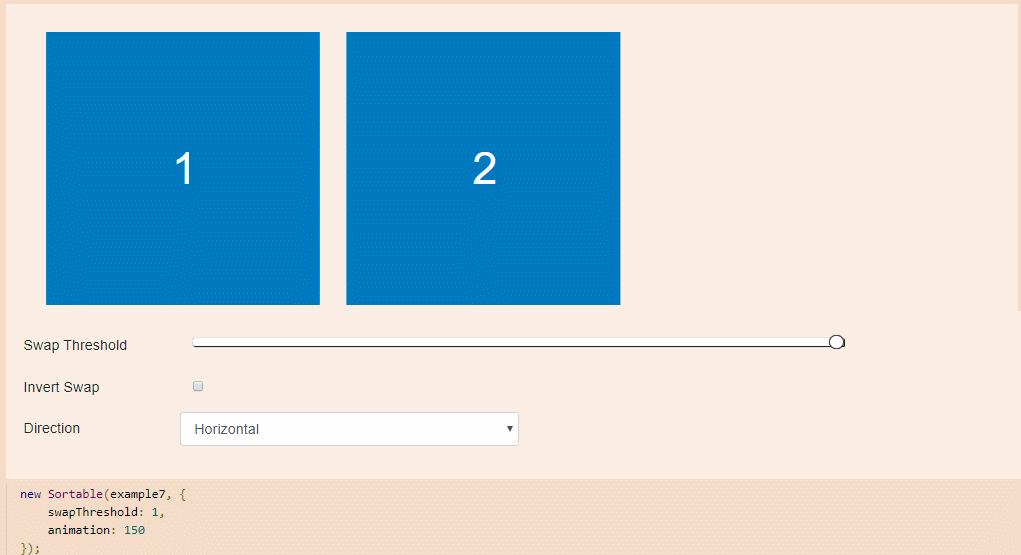

swapThreshold 选项

交换区域将占据的目标百分比，介于 0 和之间 1

invertSwap 选项

设置为 true ，将交换区域设置在目标的侧面，以实现“在项目之间”排序的效果

direction 选项

方向可排序应该排序]。可设置 'vertical' ， 'horizontal' 或功能，只要目标拖过将被调用。必须返回 'vertical' 或 'horizontal'

 Sortable.create(el, {
	direction: function(evt, target, dragEl) {
		if (target !== null && target.className.includes('half-column') && dragEl.className.includes('half-column')) {
			return 'horizontal';
		return 'vertical';

touchStartThreshold 选项

此选项类似于 fallbackTolerance 选项。

delay 设置此选项后，即使手指不动，某些具有非常灵敏的触摸显示屏的手机（如三星Galaxy S8）也会触发不需要的触摸移动事件，从而导致排序不会触发。

此选项设置取消延迟排序之前必须发生的最小指针移动。

3到5之间的值是好的

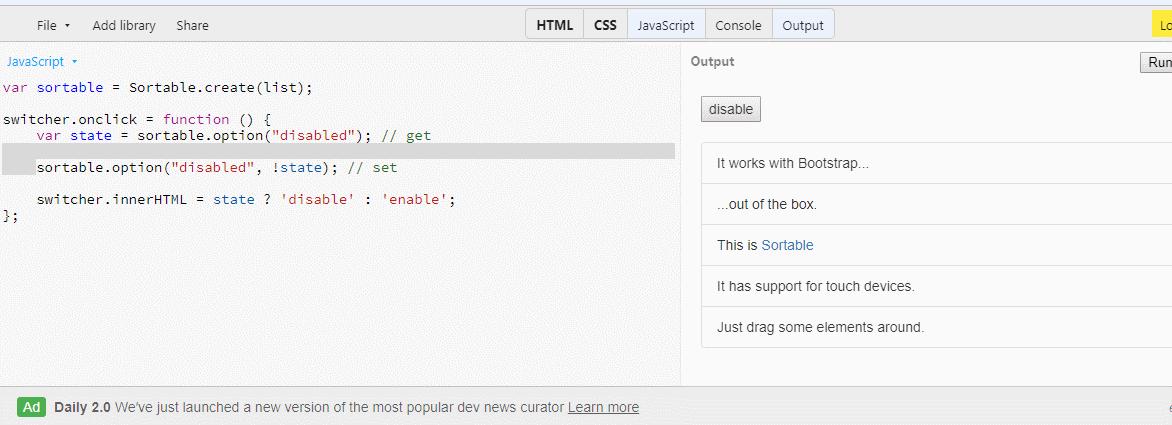

disabled 选项

如果设置为，则禁用可排序 true

var sortable = Sortable.create(list);
document.getElementById("switcher").onclick = function () {
	var state = sortable.option("disabled"); // get
	sortable.option("disabled", !state); // set

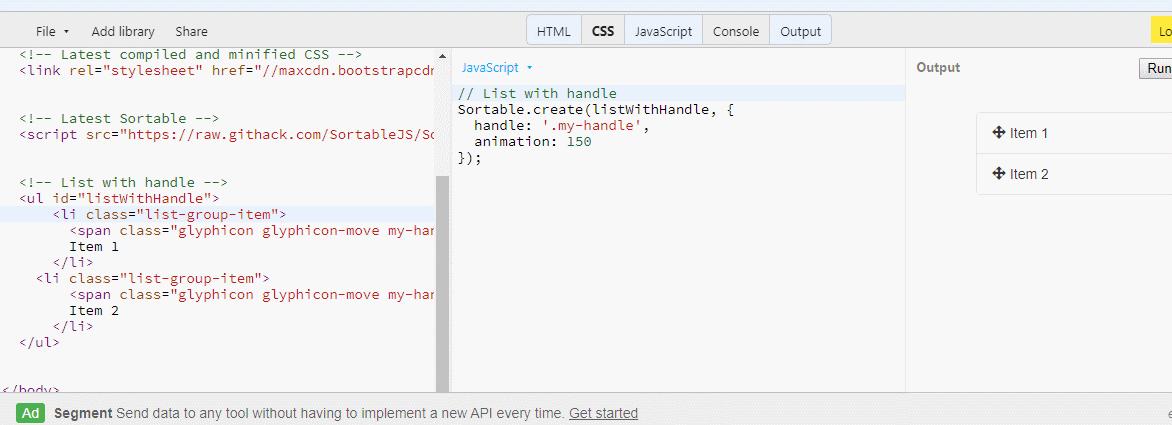

handle 选项

为了使列表项可拖动，Sortable可禁用用户的文本选择。这并不总是可取的。要允许选择文本，请定义一个拖动处理程序，该处理程序是每个列表元素都可以拖动的区域

Sortable.create(el, {
	handle: ".my-handle"
	<li><span class="my-handle">::</span> list item text one
	<li><span class="my-handle">::</span> list item text two
.my-handle {
	cursor: move;
	cursor: -webkit-grabbing;
}

filter 选项

Sortable.create(list, {
	filter: ".js-remove, .js-edit",
	onFilter: function (evt) {
		var item = evt.item,
			ctrl = evt.target;
		if (Sortable.utils.is(ctrl, ".js-remove")) {  // Click on remove button
			item.parentNode.removeChild(item); // remove sortable item
		else if (Sortable.utils.is(ctrl, ".js-edit")) {  // Click on edit link
			// ...

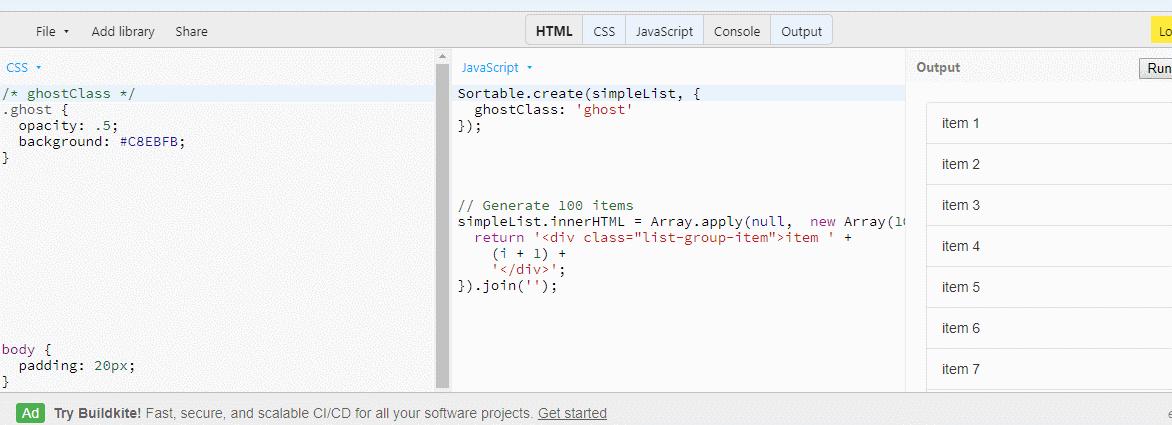

ghostClass 选项

放置占位符的类名称（默认 sortable-ghost ）

.ghost {
  opacity: 0.4;
Sortable.create(list, {
  ghostClass: "ghost"

当拖拽的时候会出现背景颜色

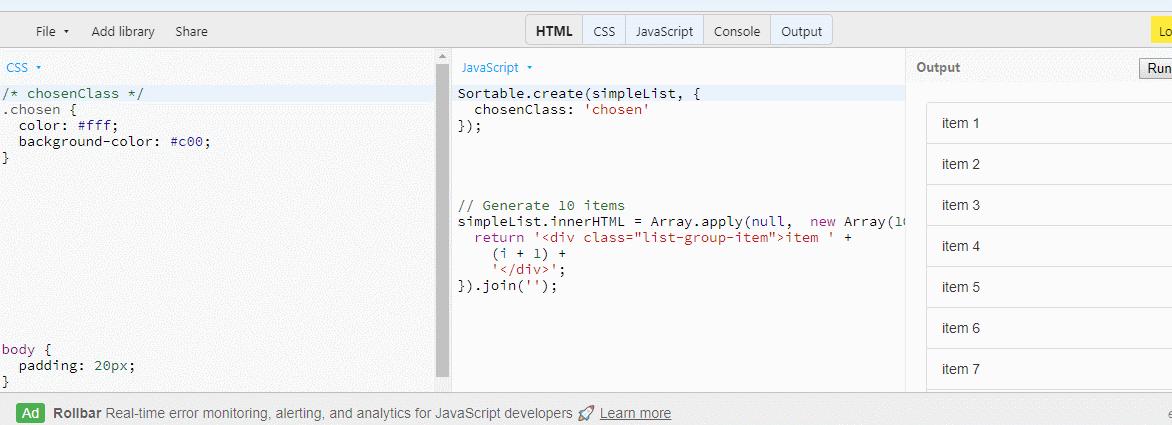

chosenClass 选项

所选项目的类名称（默认 sortable-chosen ）

.chosen {
  color: #fff;
  background-color: #c00;
Sortable.create(list, {
  delay: 500,
  chosenClass: "chosen"

选中某一项的时候出现背景颜色

forceFallback 选项

如果设置为 true ，即使我们使用的是HTML5浏览器，也会使用非HTML5浏览器的后备广告。这使我们可以测试较旧浏览器的行为，甚至在较新的浏览器中，也可以使桌面浏览器，移动浏览器和旧浏览器之间的拖放感觉更加一致。

最重要的是，Fallback始终会生成该DOM元素的副本，并附加 fallbackClass 在选项中定义的类。此行为控制此“拖动”元素的外观

<!DOCTYPE html>
  <meta charset="utf-8">
  <title>JS Bin</title>
</head>
  <!-- Latest compiled and minified CSS -->
  <link rel="stylesheet" href="//maxcdn.bootstrapcdn.com/bootstrap/3.3.1/css/bootstrap.min.css"/>
  <!-- Latest Sortable -->
  <script src="https://raw.githack.com/SortableJS/Sortable/master/Sortable.js"></script>
  <div id="sortable" class="grid">
    <div class="item"><img src="https://loremflickr.com/100/100?random=1" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=2" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=3" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=4" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=5" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=6" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=7" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=8" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=9" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=10" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=11" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=12" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=13" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=14" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=15" alt=""></div>
    <div class="item"><img src="https://loremflickr.com/100/100?random=16" alt=""></div>
</body>
</html>
// style
body {
  padding: 20px;
.grid .item {
  padding: 10px;
  float: left;
.grid .item img {
  cursor: move;
  cursor: -webkit-grabbing;
.sortable-fallback img{
  border-radius: 50%;
// js
Sortable.create(sortable, {
  forceFallback: true

fallbackTolerance 选项

模拟本地拖动阈值。指定以像素为单位的鼠标在被视为拖动之前应移动的距离。如果项目也可以单击，例如在链接列表中，则很有用。

当用户在可排序元素内单击时，在按下和松开之间，您的手通常会略微移动。仅当您将指针移过一定的公差时才开始拖动，这样您就不会在每次单击时意外开始拖动。

3到5可能是不错的值

dragoverBubble 选项

如果设置为 true ，则拖动事件将冒泡到父可排序对象。适用于后备事件和本机拖动事件。默认情况下为false，但是Sortable仅在将元素插入父Sortable或 可以 插入父Sortable时才停止冒泡事件，但不在特定时间（由于动画等） 。

从1.8.0开始，您可能希望将此选项保留为false。在1.8.0之前，它可能需要 true 嵌套可排序项才能起作用

removeCloneOnHide 选项

如果设置为 false ，则通过将其CSS display 属性设置为来隐藏克隆 none 。默认情况下，此选项为 true ，这意味着Sortable在应该被隐藏时将从DOM中删除克隆的元素

emptyInsertThreshold 选项

拖动时鼠标必须与一个空的可排序对象之间的距离（以像素为单位），以便将拖动元素插入到该可排序对象中。默认为 5 。设置为 0 禁用此功能

Event object ( demo )

• to: HTMLElement — list, in which moved element
• from: HTMLElement — previous list
• item: HTMLElement — dragged element
• clone: HTMLElement
• oldIndex: Number|undefined — old index within parent
• newIndex: Number|undefined — new index within parent
• oldDraggableIndex: Number|undefined — old index within parent, only counting draggable elements
• newDraggableIndex: Number|undefined — new index within parent, only counting draggable elements
• pullMode: String|Boolean|undefined — Pull mode if dragging into another sortable ( "clone" , true , or false ), otherwise undefined

onEnd: function(/**Event*/ evt) {
          console.log(
            "evt.item.innerHTML====>",
            evt.item.innerHTML,
            "evt.item.dataset.value====>",
            evt.item.dataset.value,
            "evt.item====>",
            evt.item,
            "evt.oldIndex====>",
            evt.oldIndex,
            "evt.item.parentNode====>",
            evt.item.parentNode,
            "evt.to====>",
            evt.to,
            "evt.target====>",
            evt.target,
            "evt===>",

move event object

• to: HTMLElement
• from: HTMLElement
• dragged: HTMLElement
• draggedRect: DOMRect
• related: HTMLElement — element on which have guided
• relatedRect: DOMRect
• willInsertAfter: Boolean — true if will element be inserted after target (or false if before)

Method

option(name: String [, value: * ]): *

Get or set the option.

closest(el: String [, selector: HTMLElement ]): HTMLElement|null

For each element in the set, get the first element that matches the selector by testing the element itself and traversing up through its ancestors in the DOM tree.

toArray(): String[]

Serializes the sortable's item data-id 's ( dataIdAttr option) into an array of string.

sort(order: String[] )

Sorts the elements according to the array.

var order = sortable.toArray();
sortable.sort(order.reverse()); // apply

save()

Save the current sorting (see store )

destroy()

Removes the sortable functionality completely.

tatic methods & properties

Sortable.create(el: HTMLElement [, options: Object ]): Sortable

Create new instance.

Sortable.active: Sortable

The active Sortable instance.

Sortable.dragged: HTMLElement

The element being dragged.

Sortable.ghost: HTMLElement

The ghost element.

Sortable.clone: HTMLElement

The clone element.

Sortable.get(element: HTMLElement ): Sortable

Get the Sortable instance on an element.

Sortable.mount(plugin: ...SortablePlugin|SortablePlugin[] )

Mounts a plugin to Sortable.

Sortable.utils

• on(el :HTMLElement , event :String , fn :Function ) — attach an event handler function
• off(el :HTMLElement , event :String , fn :Function ) — remove an event handler
• css(el :HTMLElement ) :Object — get the values of all the CSS properties
• css(el :HTMLElement , prop :String ) :Mixed — get the value of style properties
• css(el :HTMLElement , prop :String , value :String ) — set one CSS properties
• css(el :HTMLElement , props :Object ) — set more CSS properties
• find(ctx :HTMLElement , tagName :String [, iterator :Function ]) :Array — get elements by tag name
• bind(ctx :Mixed , fn :Function ) :Function — Takes a function and returns a new one that will always have a particular context
• is(el :HTMLElement , selector :String ) :Boolean — check the current matched set of elements against a selector
• closest(el :HTMLElement , selector :String [, ctx :HTMLElement ]) :HTMLElement|Null — for each element in the set, get the first element that matches the selector by testing the element itself and traversing up through its ancestors in the DOM tree
• clone(el :HTMLElement ) :HTMLElement — create a deep copy of the set of matched elements
• toggleClass(el :HTMLElement , name :String , state :Boolean ) — add or remove one classes from each element
• detectDirection(el :HTMLElement ) :String — automatically detect the direction of the element as either 'vertical' or 'horizontal'

Plugins

Extra Plugins (included in complete versions)

• MultiDrag
• Swap

Default Plugins (included in default versions)

• AutoScroll
• OnSpill

插件介绍

OnSpill Plugins

该文件包含两个单独的插件，RemoveOnSpill和RevertOnSpill。它们可以单独导入，也可以将默认导出（两个插件的数组）传递给 Sortable.mount 它们。

这些插件是默认插件，并包含在Sortable的默认UMD和ESM版本中

import { Sortable, OnSpill } from 'sortablejs/modular/sortable.core.esm';
Sortable.mount(OnSpill);

RevertOnSpill Plugin

此插件启用后，如果溢出，将导致拖动的项目恢复到其原始位置（即，将其拖放到有效的Sortable放置目标之外）

new Sortable(el, {
	revertOnSpill: true, // Enable plugin
	// Called when item is spilled
	onSpill: function(/**Event*/evt) {
		evt.item // The spilled item

RemoveOnSpill Plugin

启用此插件后，如果溢出，则将导致从DOM中删除被拖动的项目（即，将其拖放到有效的Sortable放置目标之外）

new Sortable(el, {
	removeOnSpill: true, // Enable plugin
	// Called when item is spilled
	onSpill: function(/**Event*/evt) {
		evt.item // The spilled item

自动滚屏

此插件可让页面在移动设备和IE9上可滚动元素的边缘附近拖动时（或在启用回退时）自动滚动，并且还增强了大多数浏览器的本机拖放自动滚动。演示：

import { Sortable, AutoScroll } from 'sortablejs';
Sortable.mount(new AutoScroll());

Options

new Sortable(el, {
	scroll: true, // Enable the plugin. Can be HTMLElement.
	scrollFn: function(offsetX, offsetY, originalEvent, touchEvt, hoverTargetEl) { ... }, // if you have custom scrollbar scrollFn may be used for autoscrolling
	scrollSensitivity: 30, // px, how near the mouse must be to an edge to start scrolling.
	scrollSpeed: 10, // px, speed of the scrolling
	bubbleScroll: true // apply autoscroll to all parent elements, allowing for easier movement

scroll 选项

启用插件。默认为 true 。也可以将其设置为HTMLElement，这将是自动滚动的基础

scrollFn 选项

定义将用于自动滚动的功能。默认情况下使用el.scrollTop / el.scrollLeft。当您具有带有专用滚动功能的自定义滚动条时很有用。 'continue' 如果希望允许Sortable的本机自动滚动，则应返回此函数

scrollSensitivity 选项

定义鼠标必须靠近边缘才能开始滚动

scrollSpeed 选项

鼠标指针进入该 scrollSensitivity 距离内时窗口滚动的速度。

bubbleScroll 选项

如果设置为 true ，则普通 autoscroll 功能还将应用于用户拖动的元素的所有父元素

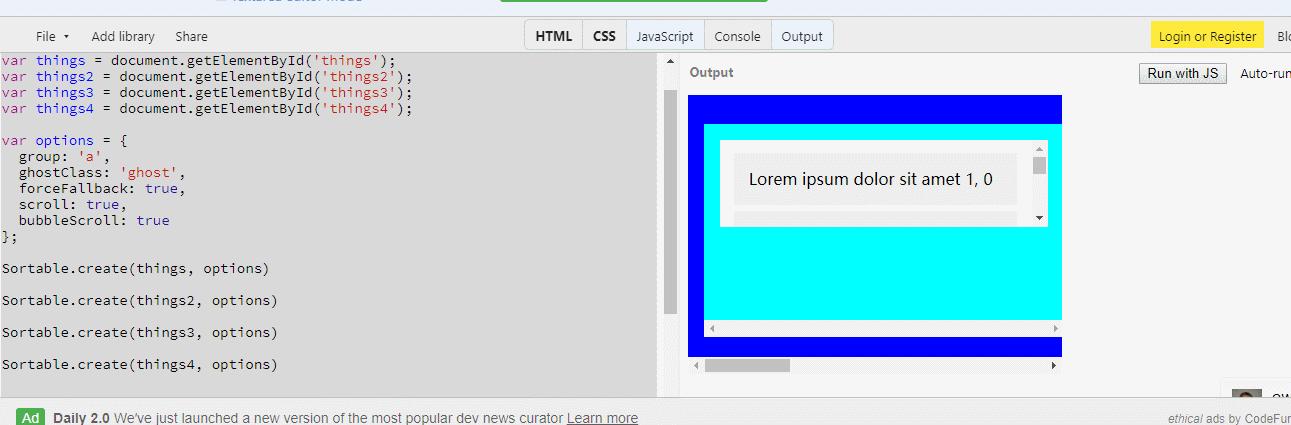

// html
<div id="content" class="outer">
    <div class="inner-semi">
      <div id="things" class="inner smaller">
    <div id="things2" class="inner">
    <div id="things3" class="inner">
    <div id="things4" class="inner">
  <script src="https://raw.githack.com/SortableJS/Sortable/master/Sortable.js"></script>
</body>
// js
var things = document.getElementById('things');
var things2 = document.getElementById('things2');
var things3 = document.getElementById('things3');
var things4 = document.getElementById('things4');
var options = {
  group: 'a',
  ghostClass: 'ghost',
  forceFallback: true,
  scroll: true,
  bubbleScroll: true
Sortable.create(things, options)
Sortable.create(things2, options)
Sortable.create(things3, options)
Sortable.create(things4, options)
for (let i = 0; i < 20; i++) {
  things.innerHTML = things.innerHTML +
    ('<div class="card">Lorem ipsum dolor sit amet 1, ' + i + '</div>');
  things2.innerHTML = things2.innerHTML +
    ('<div class="card">Lorem ipsum dolor sit amet 2, ' + i + '</div>');
  things3.innerHTML = things3.innerHTML +
    ('<div class="card">Lorem ipsum dolor sit amet 3, ' + i + '</div>');
  things4.innerHTML = things4.innerHTML +
    ('<div class="card">Lorem ipsum dolor sit amet 4, ' + i + '</div>');
// css
.outer {
  height: auto;
  max-width: 50vw;
  white-space: nowrap;
  overflow-x: auto;
  padding: 1em;
  background-color: blue;
  margin-bottom: 200vh;
.inner-semi {
  display: inline-block;
  height: 60vh;
  overflow-y: auto;
  background-color: aqua;
.inner {
  display: inline-block;
  max-height: 50vh;
  overflow-y: auto;
  background-color: white;
  padding: 0.5em;
  margin: 1em;
.smaller {
  max-height: 20vh;
  margin-bottom: 50vh;
.card {
  padding: 1em;
  background-color: #EEE;
  margin: 0.3em;
.ghost {
  color: #CCC;
  background-color: #CCC;
.drag {
  pointer-events: none;

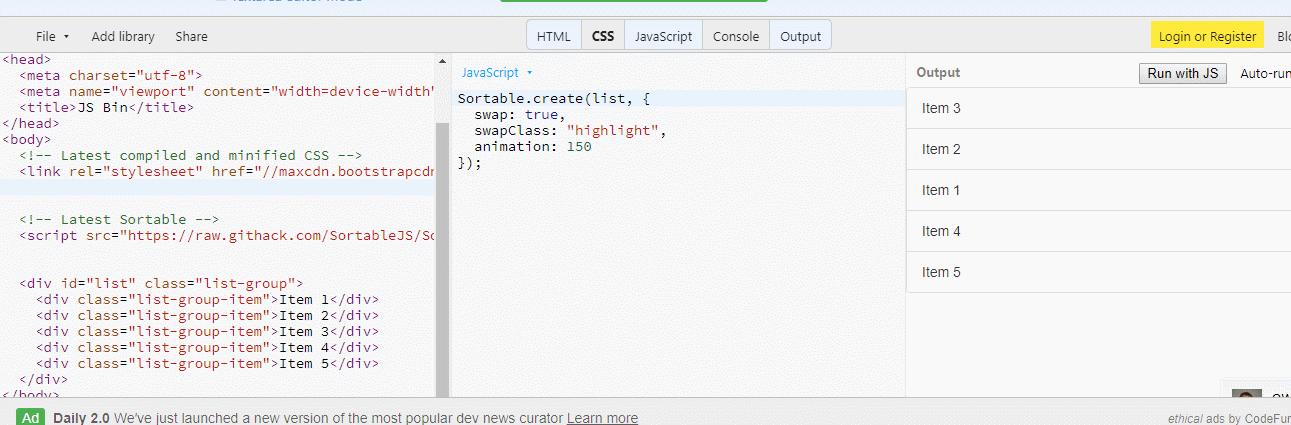

交换插件

该插件修改了Sortable的行为，以允许项目彼此交换而不是进行排序。一旦开始拖动，用户就可以将其拖动到其他项目上，并且元素不会发生任何变化。但是，用户放置的项目将与原始拖动的项目交换

import { Sortable, Swap } from 'sortablejs/modular/sortable.core.esm';
Sortable.mount(new Swap());

new Sortable(el, {
	swap: true, // Enable swap mode
	swapClass: "sortable-swap-highlight" // Class name for swap item (if swap mode is enabled)

swapClass option

Class name for the item to be swapped with, if swap mode is enabled. Defaults to sortable-swap-highlight .

.highlighted {
  background-color: #9AB6F1;
Sortable.create(list, {
  swap: true,
  swapClass: "highlighted"
});

Event Properties

• swapItem: HTMLElement|undefined — The element that the dragged element was swapped with

MultiDrag插件

该插件允许用户一次选择一个可排序项目中的多个项目，并将它们作为一个项目拖动。放置后，这些项目将按原始顺序展开，但在新位置彼此相邻

Mounting

import { Sortable, MultiDrag } from 'sortablejs';
Sortable.mount(new MultiDrag());

Options

new Sortable(el, {
	multiDrag: true, // Enable the plugin
	selectedClass: "sortable-selected", // Class name for selected item
	multiDragKey: null, // Key that must be down for items to be selected
	// Called when an item is selected
	onSelect: function(/**Event*/evt) {
		evt.item // The selected item
	// Called when an item is deselected
	onDeselect: function(/**Event*/evt) {
		evt.item // The deselected item

multiDragKey option

The key that must be down for multiple items to be selected. The default is null , meaning no key must be down. For special keys, such as the CTRL key, simply specify the option as 'CTRL' (casing does not matter).

selectedClass option

Class name for the selected item(s) if multiDrag is enabled. Defaults to sortable-selected .

.selected {
  background-color: #f9c7c8;
  border: solid red 1px;
Sortable.create(list, {
  multiDrag: true,
  selectedClass: "selected"

Event Properties

• items: HTMLElement[] — Array of selected items, or empty
• clones: HTMLElement[] — Array of clones, or empty
• oldIndicies: Index[] — Array containing information on the old indicies of the selected elements.
• newIndicies: Index[] — Array containing information on the new indicies of the selected elements.

Index Object

• element: HTMLElement — The element whose index is being given
• index: Number — The index of the element

Note on newIndicies

For any event that is fired during sorting, the index of any selected element that is not the main dragged element is given as -1 . This is because it has either been removed from the DOM, or because it is in a folding animation (folding to the dragged element) and will be removed after this animation is complete.

完整的配置项

var sortable = new Sortable(el, {
	group: "name",  // or { name: "...", pull: [true, false, 'clone', array], put: [true, false, array] }
	sort: true,  // sorting inside list
	delay: 0, // time in milliseconds to define when the sorting should start
	delayOnTouchOnly: false, // only delay if user is using touch
	touchStartThreshold: 0, // px, how many pixels the point should move before cancelling a delayed drag event
	disabled: false, // Disables the sortable if set to true.
	store: null,  // @see Store
	animation: 150,  // ms, animation speed moving items when sorting, `0` — without animation
	easing: "cubic-bezier(1, 0, 0, 1)", // Easing for animation. Defaults to null. See https://easings.net/ for examples.
	handle: ".my-handle",  // Drag handle selector within list items
	filter: ".ignore-elements",  // Selectors that do not lead to dragging (String or Function)
	preventOnFilter: true, // Call `event.preventDefault()` when triggered `filter`
	draggable: ".item",  // Specifies which items inside the element should be draggable
	dataIdAttr: 'data-id',
	ghostClass: "sortable-ghost",  // Class name for the drop placeholder
	chosenClass: "sortable-chosen",  // Class name for the chosen item
	dragClass: "sortable-drag",  // Class name for the dragging item
	swapThreshold: 1, // Threshold of the swap zone
	invertSwap: false, // Will always use inverted swap zone if set to true
	invertedSwapThreshold: 1, // Threshold of the inverted swap zone (will be set to swapThreshold value by default)
	direction: 'horizontal', // Direction of Sortable (will be detected automatically if not given)
	forceFallback: false,  // ignore the HTML5 DnD behaviour and force the fallback to kick in
	fallbackClass: "sortable-fallback",  // Class name for the cloned DOM Element when using forceFallback
	fallbackOnBody: false,  // Appends the cloned DOM Element into the Document's Body
	fallbackTolerance: 0, // Specify in pixels how far the mouse should move before it's considered as a drag.
	dragoverBubble: false,
	removeCloneOnHide: true, // Remove the clone element when it is not showing, rather than just hiding it
	emptyInsertThreshold: 5, // px, distance mouse must be from empty sortable to insert drag element into it
        swap: true, // Enable swap mode
	swapClass: "sortable-swap-highlight", // Class name for swap item (if swap mode is enabled)
        scroll: true, // Enable the plugin. Can be HTMLElement.
	scrollFn: function(offsetX, offsetY, originalEvent, touchEvt, hoverTargetEl) { ... }, // if you have custom scrollbar scrollFn may be used for autoscrolling
	scrollSensitivity: 30, // px, how near the mouse must be to an edge to start scrolling.
	scrollSpeed: 10, // px, speed of the scrolling
	bubbleScroll: true, // apply autoscroll to all parent elements, allowing for easier movement
        multiDrag: true, // Enable the plugin
	selectedClass: "sortable-selected", // Class name for selected item
	multiDragKey: null, // Key that must be down for items to be selected
	// Called when an item is selected
	onSelect: function(/**Event*/evt) {
		evt.item // The selected item
	// Called when an item is deselected
	onDeselect: function(/**Event*/evt) {
		evt.item // The deselected item
        removeOnSpill: true, // Enable plugin
	// Called when item is spilled
	onSpill: function(/**Event*/evt) {
		evt.item // The spilled item
	setData: function (/** DataTransfer */dataTransfer, /** HTMLElement*/dragEl) {
		dataTransfer.setData('Text', dragEl.textContent); // `dataTransfer` object of HTML5 DragEvent
	// Element is chosen
	onChoose: function (/**Event*/evt) {
		evt.oldIndex;  // element index within parent
	// Element is unchosen
	onUnchoose: function(/**Event*/evt) {
		// same properties as onEnd
	// Element dragging started
	onStart: function (/**Event*/evt) {
		evt.oldIndex;  // element index within parent
	// Element dragging ended
	onEnd: function (/**Event*/evt) {
		var itemEl = evt.item;  // dragged HTMLElement
		evt.to;    // target list
		evt.from;  // previous list
		evt.oldIndex;  // element's old index within old parent
		evt.newIndex;  // element's new index within new parent
		evt.oldDraggableIndex; // element's old index within old parent, only counting draggable elements
		evt.newDraggableIndex; // element's new index within new parent, only counting draggable elements
		evt.clone // the clone element
		evt.pullMode;  // when item is in another sortable: `"clone"` if cloning, `true` if moving
	// Element is dropped into the list from another list
	onAdd: function (/**Event*/evt) {
		// same properties as onEnd
	// Changed sorting within list
	onUpdate: function (/**Event*/evt) {
		// same properties as onEnd
	// Called by any change to the list (add / update / remove)
	onSort: function (/**Event*/evt) {
		// same properties as onEnd
	// Element is removed from the list into another list
	onRemove: function (/**Event*/evt) {
		// same properties as onEnd
	// Attempt to drag a filtered element
	onFilter: function (/**Event*/evt) {
		var itemEl = evt.item;  // HTMLElement receiving the `mousedown|tapstart` event.
	// Event when you move an item in the list or between lists
	onMove: function (/**Event*/evt, /**Event*/originalEvent) {
		// Example: https://jsbin.com/nawahef/edit?js,output
		evt.dragged; // dragged HTMLElement
		evt.draggedRect; // DOMRect {left, top, right, bottom}
		evt.related; // HTMLElement on which have guided
		evt.relatedRect; // DOMRect
		evt.willInsertAfter; // Boolean that is true if Sortable will insert drag element after target by default
		originalEvent.clientY; // mouse position
		// return false; — for cancel
		// return -1; — insert before target
		// return 1; — insert after target
	// Called when creating a clone of element
	onClone: function (/**Event*/evt) {
		var origEl = evt.item;
		var cloneEl = evt.clone;
	// Called when dragging element changes position
