目录结构
在这里插入图片描述
.aspx
<%@ Page Title="" Language="C#" MasterPageFile="~/MasterPage.master" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" Runat="Server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" Runat="Server">
    <asp:Menu ID="Menu1" runat="server" DataSourceID="XmlDataSource1" Orientation="Horizontal" BackColor="#F7F6F3" DynamicHorizontalOffset="2" Font-Names="Verdana" Font-Size="Small" ForeColor="#7C6F57" StaticSubMenuIndent="10px">
        <DataBindings>
            <asp:MenuItemBinding DataMember="Parent" NavigateUrlField="name" TextField="name" />
            <asp:MenuItemBinding DataMember="Child" NavigateUrlField="name" TextField="name" />
        </DataBindings>
        <DynamicHoverStyle BackColor="#7C6F57" ForeColor="White" />
        <DynamicMenuItemStyle HorizontalPadding="5px" VerticalPadding="2px" />
        <DynamicMenuStyle BackColor="#F7F6F3" />
        <DynamicSelectedStyle BackColor="#5D7B9D" />
        <StaticHoverStyle BackColor="#7C6F57" ForeColor="White" />
        <StaticMenuItemStyle HorizontalPadding="5px" VerticalPadding="2px" />
        <StaticSelectedStyle BackColor="#5D7B9D" />
    </asp:Menu>
    <asp:XmlDataSource ID="XmlDataSource1" runat="server" DataFile="~/XMLFile.xml" XPath="/*/*"></asp:XmlDataSource>
</asp:Content>
<asp:Content ID="Content3" ContentPlaceHolderID="ContentPlaceHolder2" Runat="Server">
    <asp:TreeView ID="TreeView2" runat="server" DataSourceID="SiteMapDataSource1" ImageSet="Arrows">
        <HoverNodeStyle Font-Underline="True" ForeColor="#5555DD" />
        <NodeStyle Font-Names="Tahoma" Font-Size="10pt" ForeColor="Black" HorizontalPadding="5px" NodeSpacing="0px" VerticalPadding="0px" />
        <ParentNodeStyle Font-Bold="False" />
        <SelectedNodeStyle Font-Underline="True" ForeColor="#5555DD" HorizontalPadding="0px" VerticalPadding="0px" />
    </asp:TreeView>
    <asp:SiteMapDataSource ID="SiteMapDataSource1" runat="server" ShowStartingNode="False" />
</asp:Content>
web.config
<configuration>
    <connectionStrings>
      <remove name="LocalSqlServer"/>
        <add name="LocalSqlServer" connectionString="server=(localdb)\MSSQLLocalDB;database=Test;uid=;pwd=;"/>
    </connectionStrings>
    <system.web>
      <compilation debug="true" targetFramework="4.5.2" />
    </system.web>
</configuration>
.sitemap
<?xml version="1.0" encoding="utf-8" ?>
<siteMap xmlns="http://schemas.microsoft.com/AspNet/SiteMap-File-1.0" >
    <siteMapNode url="" title="root"  description="">
        <siteMapNode url="" title="学院首页"  description="" />
      <siteMapNode url="" title="院情总览"  description="classTwo">
        <siteMapNode url="" title="学院简介"/>
        <siteMapNode url="" title="现任领导"/>
        <siteMapNode url="" title="办学条件"/>
      </siteMapNode>
      <siteMapNode url="" title="办学成就"  description="" />
      <siteMapNode url="" title="师资队伍"  description="" />
      <siteMapNode url="" title="学科专业"  description="" />
      <siteMapNode url="" title="教学管理"  description="" />
      <siteMapNode url="" title="科学研究"  description="" />
      <siteMapNode url="" title="合作交流"  description="" />
      <siteMapNode url="" title="招生就业"  description="" />
      <siteMapNode url="" title="党建思政"  description="" />
      <siteMapNode url="" title="学生园地"  description="" />
    </siteMapNode>
</siteMap>
<?xml version="1.0" encoding="utf-8" ?>
<Root url="" name="人工智能学院" describe="">
  <Parent url="" name="学院首页" describe="" ></Parent>
  <Parent url="" name="院情总览" describe="" >
    <Child url="" name="学院简介" describe=""></Child>
    <Child url="" name="现任领导" describe=""></Child>
    <Child url="" name="办学条件" describe=""></Child>
  </Parent>
  <Parent url="" name="办学成就" describe="" ></Parent>
  <Parent url="" name="师资队伍" describe="" ></Parent>
  <Parent url="" name="学科专业" describe="" ></Parent>
  <Parent url="" name="教学管理" describe="" ></Parent>
  <Parent url="" name="科学研究" describe="" ></Parent>
  <Parent url="" name="合作交流" describe="" ></Parent>
  <Parent url="" name="招生就业" describe="" ></Parent>
  <Parent url="" name="党建思政" describe="" ></Parent>
  <Parent url="" name="学生园地" describe="" ></Parent>
</Root>

 注意：
 母版拖放后，有几个控件就加几个contentPlaceHolder

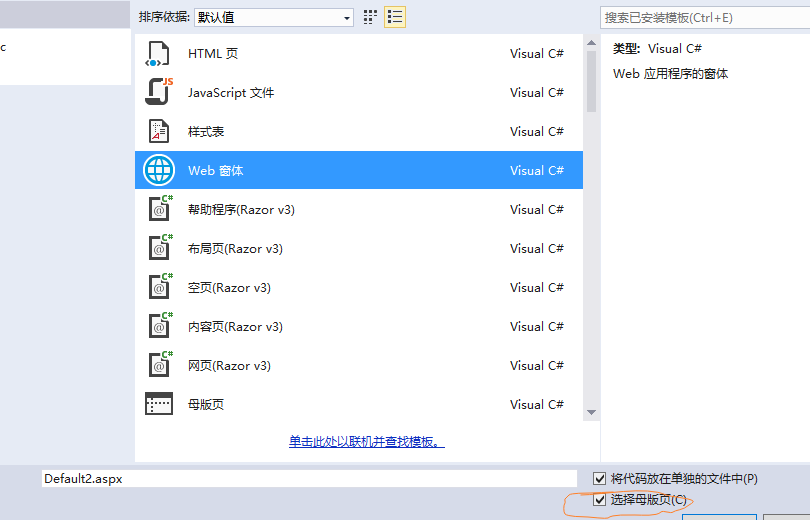

 添加窗体勾选选择母版页

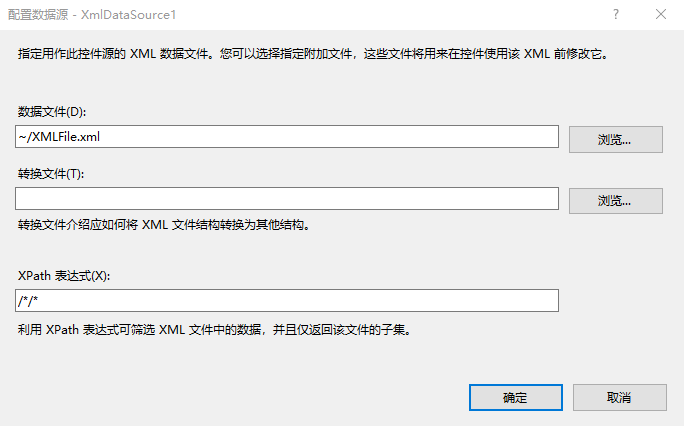

 加上/*/*启动不显示根目录
